Regular price
$1,375.00 USD
Regular price
Sale price
$1,375.00 USD
Unit price
per
Couldn't load pickup availability
Bore100 mm
3.937 in
Outside dia.180 mm
7.0866 in
Width34 mm
1.3386 in
TypeSuper-precision angular contact ball bearing (Timken / Fafnir MM series)
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

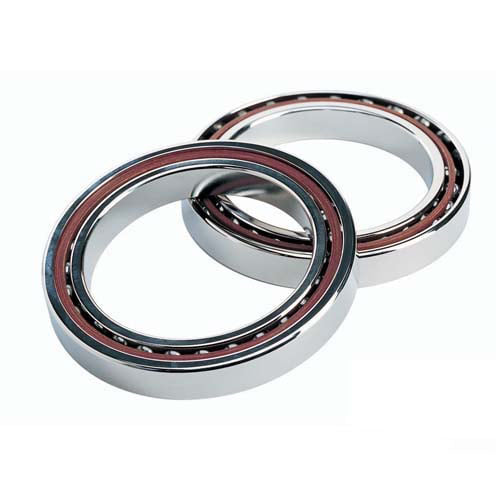

Image is for illustration purposes only.
2MM220WIDUL specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 100 mm | 3.937 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 180 mm | 7.0866 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 34 mm | 1.3386 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Super-precision angular contact ball bearing (Timken / Fafnir MM series) | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Set Width | 68 mm (2 bearings) | Stated by the designation | |
| Contact Angle | 15° | Stated by the designation | |
| Preload | Light | Stated by the designation | |
| Arrangement | Duplex universal — matched set of 2, flush ground; may be mounted back-to-back (DB), face-to-face (DF) or tandem (DT) | Stated by the designation | |
2MM220WIDUL is a super-precision angular contact ball bearing (Timken / Fafnir MM series), 100 mm bore × 180 mm OD × 34 mm wide (3.937 × 7.0866 × 1.3386 in).
Measurement Type
Metric
Inner Diameter (ID)
100 mm
Outside Diameter (OD)
180 mm
Width
68 mm
Sealing
Open
Precision Class
ABEC 7 | ISO P4
Set Width (mm)
68
Contact Angle
15°
Preload
Light
Arrangement
Duplex universal
Series
2MM
Bearing Type
Super-precision angular contact ball bearing
Other Features
Single Row | Angular Contact | Super High Precision
Component
Assembly
Weight (kg)
6.418
Basic Number
2MM220
UNSPSC
31171504
