Regular price
$3,750.00 USD
Regular price
Sale price
$3,750.00 USD
Unit price
per
Couldn't load pickup availability
Bore140 mm
5.5118 in
Outside dia.210 mm
8.2677 in
Width33 mm
1.2992 in
TypeSuper-precision angular contact ball bearing (Timken / Fafnir MM series)
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

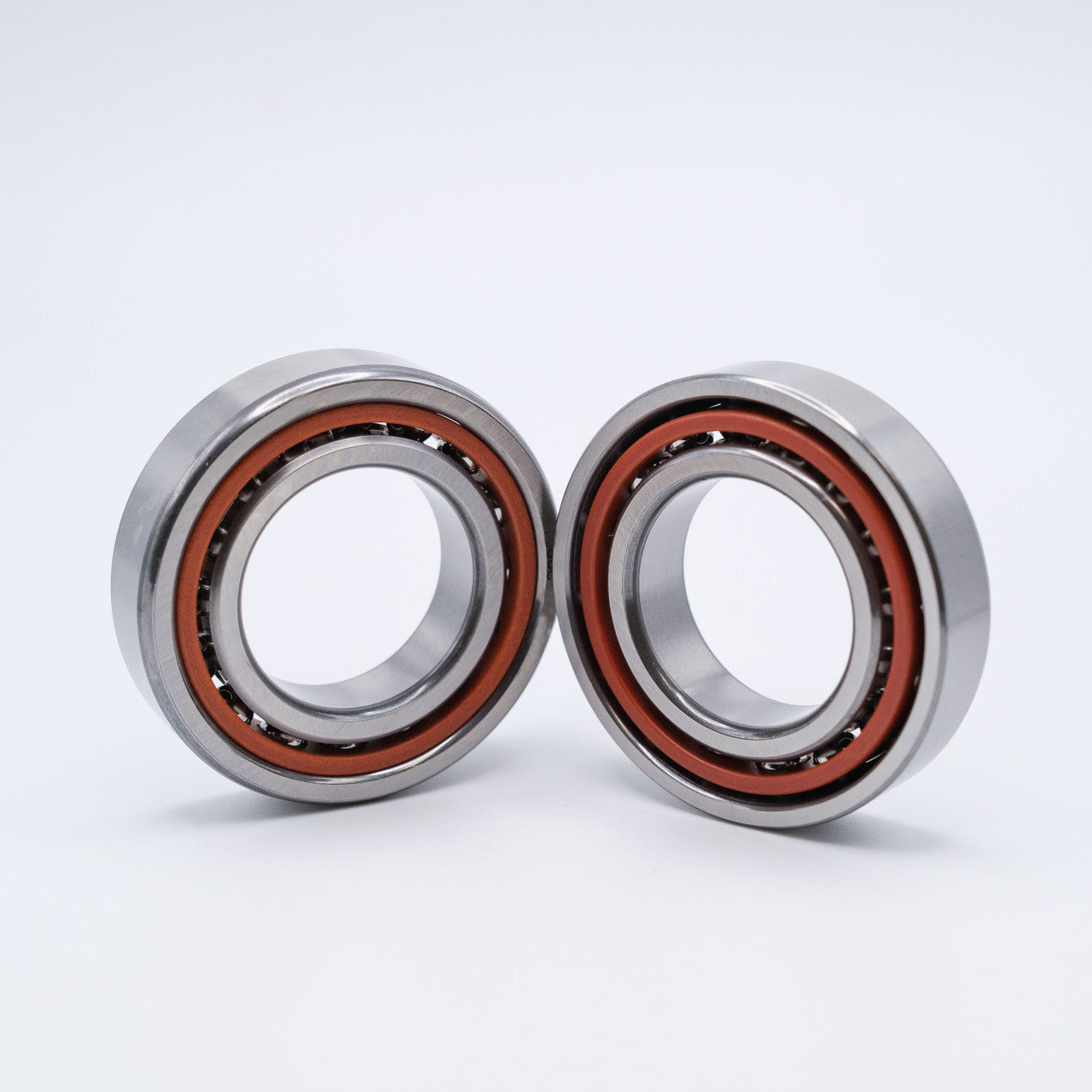

Image is for illustration purposes only.
2MM9128WIDUL specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 140 mm | 5.5118 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 210 mm | 8.2677 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 33 mm | 1.2992 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Super-precision angular contact ball bearing (Timken / Fafnir MM series) | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Set Width | 66 mm (2 bearings) | Stated by the designation | |
| Contact Angle | 15° | Stated by the designation | |
| Preload | Light | Stated by the designation | |
| Arrangement | Duplex universal — matched set of 2, flush ground; may be mounted back-to-back (DB), face-to-face (DF) or tandem (DT) | Stated by the designation | |
2MM9128WIDUL is a super-precision angular contact ball bearing (Timken / Fafnir MM series), 140 mm bore × 210 mm OD × 33 mm wide (5.5118 × 8.2677 × 1.2992 in).
Measurement Type
Metric
Inner Diameter (ID)
140 mm
Outside Diameter (OD)
210 mm
Width
66 mm
Sealing
Open
Precision Class
ABEC 7 | ISO P4
Set Width (mm)
66
Contact Angle
15°
Preload
Light
Arrangement
Duplex universal
Series
2MM
Bearing Type
Super-precision angular contact ball bearing
Other Features
Single Row | Angular Contact | Super High Precision
Component
Assembly
Weight (kg)
6.908
Basic Number
2MM9128
UNSPSC
31171504
