Bore85 mm
3.3465 in
Outside dia.150 mm
5.9055 in
Width28 mm
1.1024 in
TypeSuper-precision angular contact ball bearing (Timken / Fafnir MM series)
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

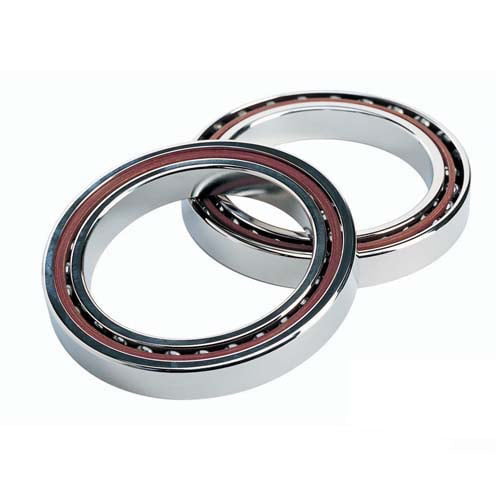

Image is for illustration purposes only.
2MM217WIDUL specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 85 mm | 3.3465 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 150 mm | 5.9055 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 28 mm | 1.1024 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Super-precision angular contact ball bearing (Timken / Fafnir MM series) | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Set Width | 56 mm (2 bearings) | Stated by the designation | |
| Contact Angle | 15° | Stated by the designation | |
| Preload | Light | Stated by the designation | |
| Arrangement | Duplex universal — matched set of 2, flush ground; may be mounted back-to-back (DB), face-to-face (DF) or tandem (DT) | Stated by the designation | |
2MM217WIDUL is a super-precision angular contact ball bearing (Timken / Fafnir MM series), 85 mm bore × 150 mm OD × 28 mm wide (3.3465 × 5.9055 × 1.1024 in).
Measurement Type
Metric
Inner Diameter (ID)
85 mm
Outside Diameter (OD)
150 mm
Width
56 mm
Sealing
Open
Precision Class
ABEC 7 | ISO P4
Set Width (mm)
56
Contact Angle
15°
Preload
Light
Arrangement
Duplex universal
Series
2MM
Bearing Type
Super-precision angular contact ball bearing
Other Features
Single Row | Angular Contact | Super High Precision
Component
Assembly
Weight (kg)
3.634
Basic Number
2MM217
UNSPSC
31171504
