Bore60 mm
2.3622 in
Outside dia.110 mm
4.3307 in
Width22 mm
0.8661 in
TypeSuper-precision angular contact ball bearing (Timken / Fafnir MM series)
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

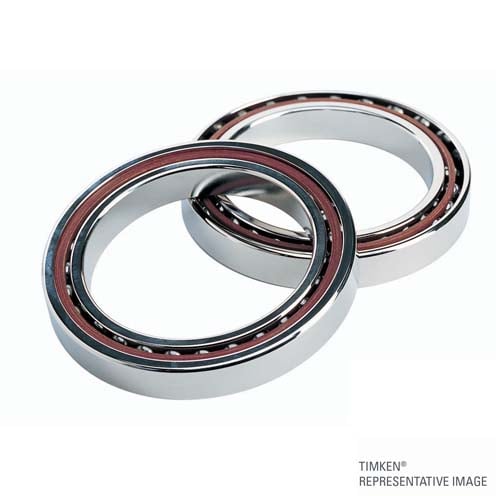

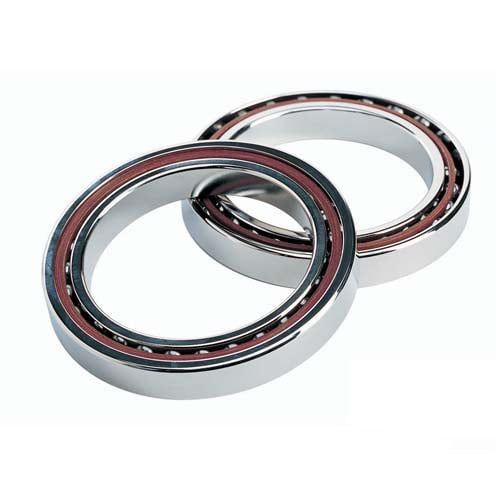

Image is for illustration purposes only.
2MM212WIDUL specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 60 mm | 2.3622 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 110 mm | 4.3307 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 22 mm | 0.8661 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Super-precision angular contact ball bearing (Timken / Fafnir MM series) | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Set Width | 44 mm (2 bearings) | Stated by the designation | |
| Contact Angle | 15° | Stated by the designation | |
| Preload | Light | Stated by the designation | |
| Arrangement | Duplex universal — matched set of 2, flush ground; may be mounted back-to-back (DB), face-to-face (DF) or tandem (DT) | Stated by the designation | |
2MM212WIDUL is a super-precision angular contact ball bearing (Timken / Fafnir MM series), 60 mm bore × 110 mm OD × 22 mm wide (2.3622 × 4.3307 × 0.8661 in).
Measurement Type
Metric
Inner Diameter (ID)
60 mm
Outside Diameter (OD)
110 mm
Width
44 mm
Sealing
Open
Precision Class
ABEC 7 | ISO P4
Set Width (mm)
44
Contact Angle
15°
Preload
Light
Arrangement
Duplex universal
Series
2MM
Bearing Type
Super-precision angular contact ball bearing
Other Features
Single Row | Angular Contact | Super High Precision
Component
Assembly
Weight (kg)
1.574
Basic Number
2MM212
UNSPSC
31171504
