Regular price
$312.50 USD
Regular price
Sale price
$312.50 USD
Unit price
per
Couldn't load pickup availability
Bore45 mm
1.7717 in
Outside dia.75 mm
2.9528 in
Width16 mm
0.6299 in
TypeSuper-precision angular contact ball bearing (Timken / Fafnir MM series)
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

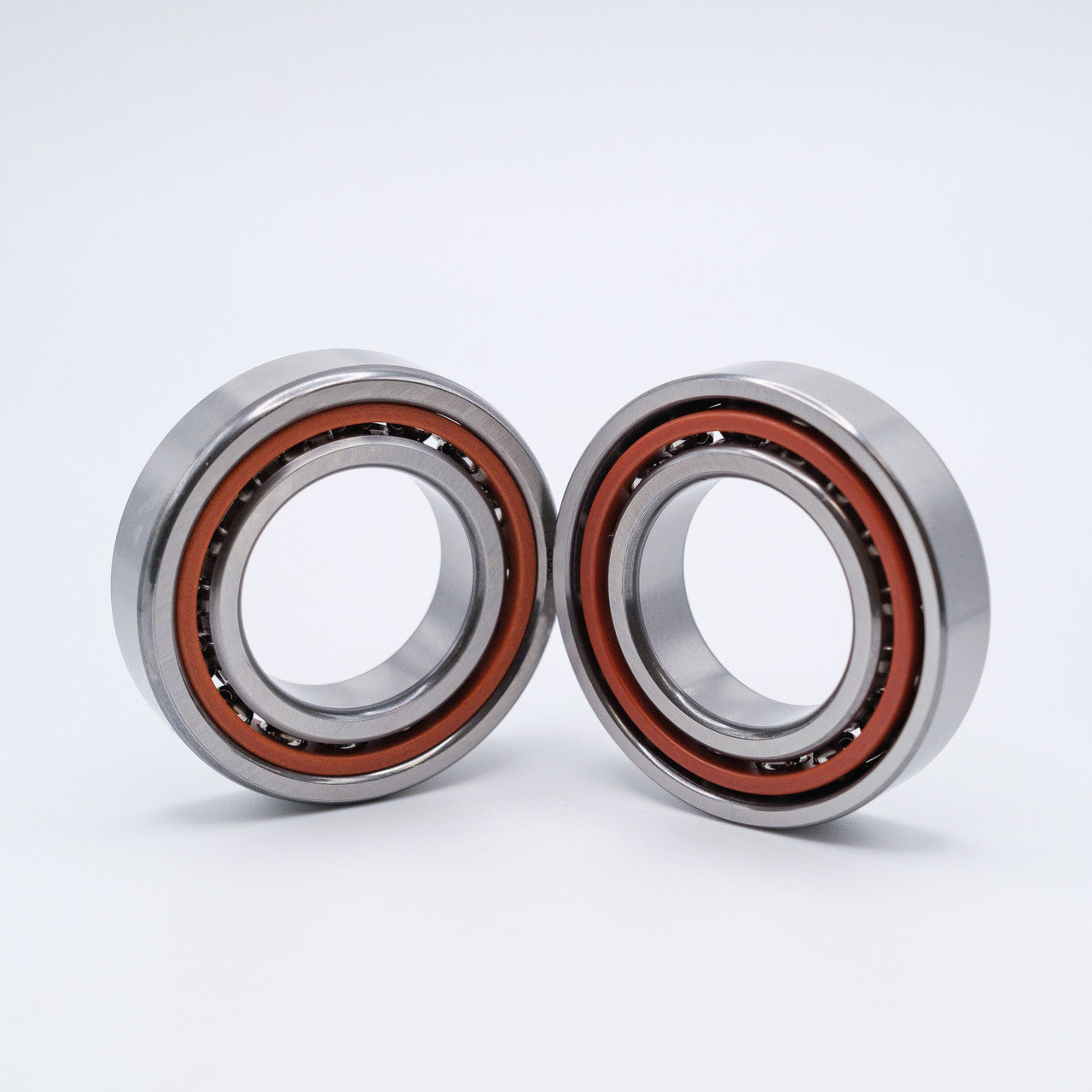

Image is for illustration purposes only.
2MM9109WIDUL specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 45 mm | 1.7717 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 75 mm | 2.9528 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 16 mm | 0.6299 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Super-precision angular contact ball bearing (Timken / Fafnir MM series) | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Set Width | 32 mm (2 bearings) | Stated by the designation | |
| Contact Angle | 15° | Stated by the designation | |
| Preload | Light | Stated by the designation | |
| Arrangement | Duplex universal — matched set of 2, flush ground; may be mounted back-to-back (DB), face-to-face (DF) or tandem (DT) | Stated by the designation | |
2MM9109WIDUL is a super-precision angular contact ball bearing (Timken / Fafnir MM series), 45 mm bore × 75 mm OD × 16 mm wide (1.7717 × 2.9528 × 0.6299 in).
Measurement Type
Metric
Inner Diameter (ID)
45 mm
Outside Diameter (OD)
75 mm
Width
32 mm
Sealing
Open
Precision Class
ABEC 7 | ISO P4
Set Width (mm)
32
Contact Angle
15°
Preload
Light
Arrangement
Duplex universal
Series
2MM
Bearing Type
Super-precision angular contact ball bearing
Other Features
Single Row | Angular Contact | Super High Precision
Component
Assembly
Weight (kg)
0.48
Basic Number
2MM9109
UNSPSC
31171504
