Regular price
$331.25 USD
Regular price
Sale price
$331.25 USD
Unit price
per
Couldn't load pickup availability
Bore50 mm
1.9685 in
Outside dia.80 mm
3.1496 in
Width16 mm
0.6299 in
TypeSuper-precision angular contact ball bearing (Timken / Fafnir MM series)
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

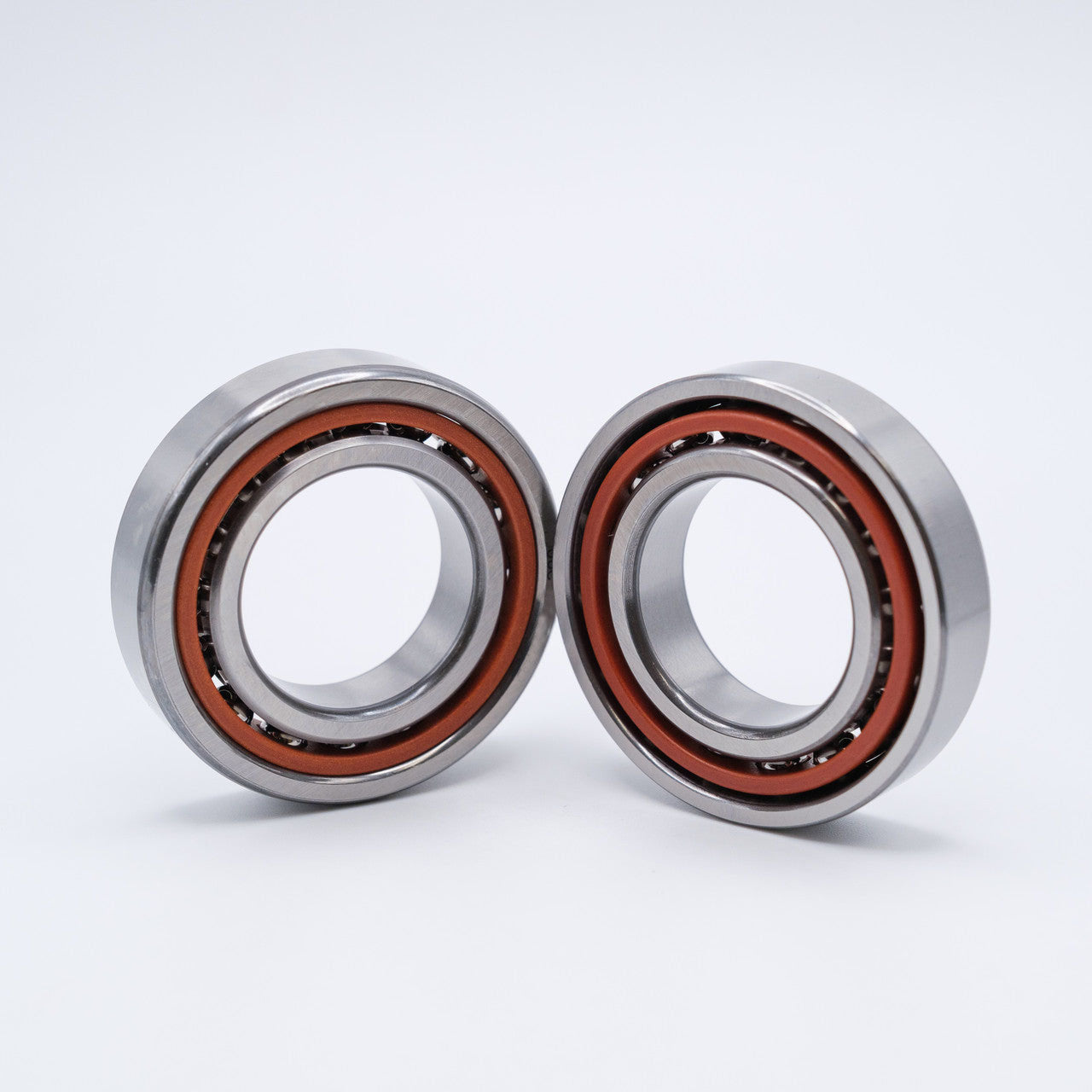

Image is for illustration purposes only.
2MM9110WIDUL specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 50 mm | 1.9685 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 80 mm | 3.1496 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 16 mm | 0.6299 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Super-precision angular contact ball bearing (Timken / Fafnir MM series) | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Set Width | 32 mm (2 bearings) | Stated by the designation | |
| Contact Angle | 15° | Stated by the designation | |
| Preload | Light | Stated by the designation | |
| Arrangement | Duplex universal — matched set of 2, flush ground; may be mounted back-to-back (DB), face-to-face (DF) or tandem (DT) | Stated by the designation | |
2MM9110WIDUL is a super-precision angular contact ball bearing (Timken / Fafnir MM series), 50 mm bore × 80 mm OD × 16 mm wide (1.9685 × 3.1496 × 0.6299 in).
Measurement Type
Metric
Inner Diameter (ID)
50 mm
Outside Diameter (OD)
80 mm
Width
32 mm
Sealing
Open
Precision Class
ABEC 7 | ISO P4
Set Width (mm)
32
Contact Angle
15°
Preload
Light
Arrangement
Duplex universal
Series
2MM
Bearing Type
Super-precision angular contact ball bearing
Other Features
Single Row | Angular Contact | Super High Precision
Component
Assembly
Weight (kg)
0.516
Basic Number
2MM9110
UNSPSC
31171504
