2MM9101WIDUL
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeRegular price
$250.00 USD
Regular price
Sale price
$250.00 USD
Unit price
per
Couldn't load pickup availability
Bore12 mm
0.4724 in
Outside dia.28 mm
1.1024 in
Width8 mm
0.315 in
TypeSuper-precision angular contact ball bearing (Timken / Fafnir MM series)
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

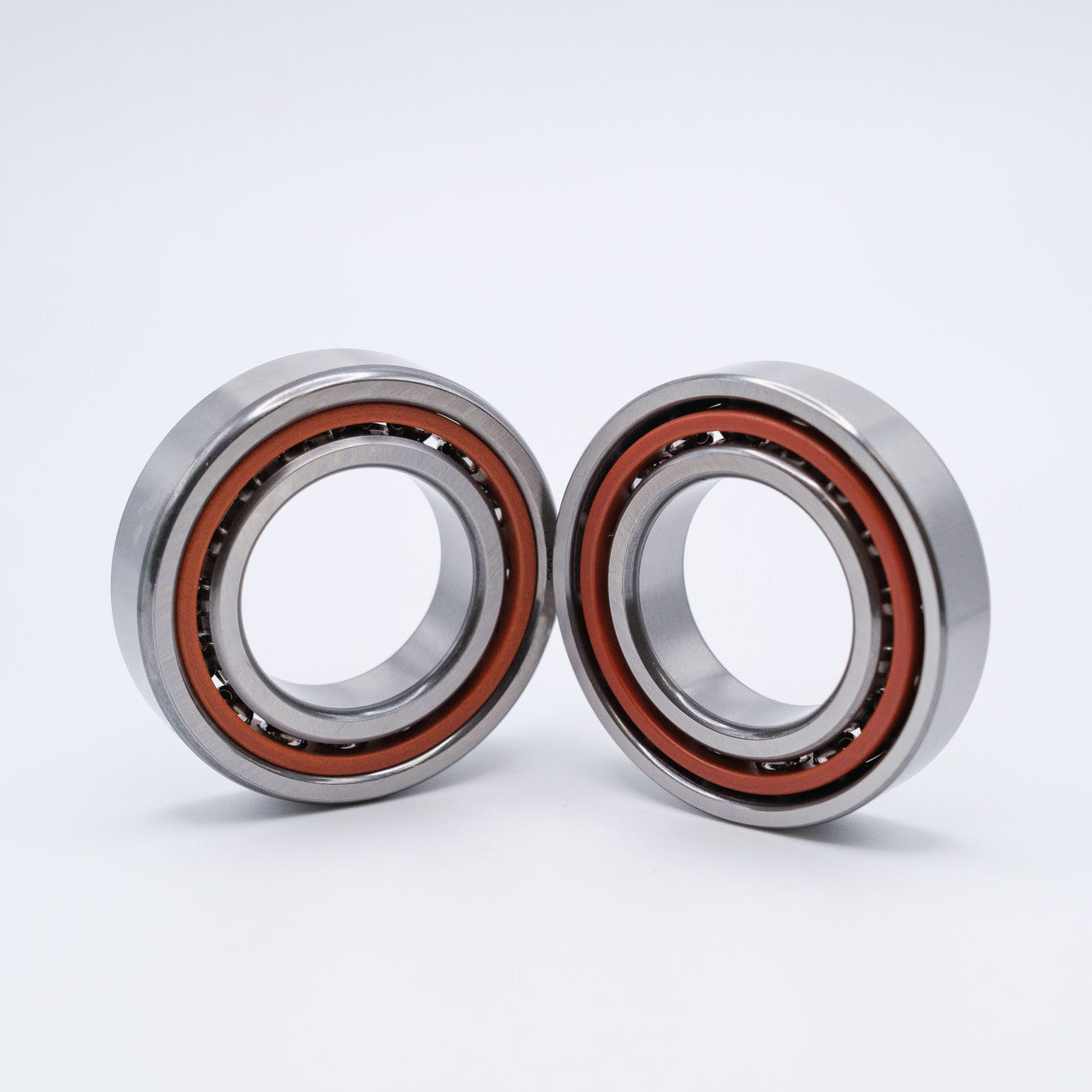

Image is for illustration purposes only.
2MM9101WIDUL specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 12 mm | 0.4724 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 28 mm | 1.1024 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 8 mm | 0.315 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Super-precision angular contact ball bearing (Timken / Fafnir MM series) | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Set Width | 16 mm (2 bearings) | Stated by the designation | |
| Contact Angle | 15° | Stated by the designation | |
| Preload | Light | Stated by the designation | |
| Arrangement | Duplex universal — matched set of 2, flush ground; may be mounted back-to-back (DB), face-to-face (DF) or tandem (DT) | Stated by the designation | |
2MM9101WIDUL is a super-precision angular contact ball bearing (Timken / Fafnir MM series), 12 mm bore × 28 mm OD × 8 mm wide (0.4724 × 1.1024 × 0.315 in).
Series:Spindle Angular Contact Ball Bearings WI
Bore/Inner Diameter Inch:0.472
Bore/Inner Diameter mm:12
Outside Diameter Inch:1.102
Outside Diameter mm:28
Measurement Type
Metric
Inner Diameter (ID)
12 mm
Outside Diameter (OD)
28 mm
Width
16 mm
Sealing
Open
Precision Class
ABEC 7 | ISO P4
Other Features
Single Row | Angular Contact | Super High Precision
Component
Assembly
Weight (kg)
0.04
Basic Number
2MM9101
UNSPSC
31171504
