Regular price
$250.00 USD
Regular price
Sale price
$250.00 USD
Unit price
per
Couldn't load pickup availability
Bore15 mm
0.5906 in
Outside dia.32 mm
1.2598 in
Width9 mm
0.3543 in
TypeSuper-precision angular contact ball bearing (Timken / Fafnir MM series)
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

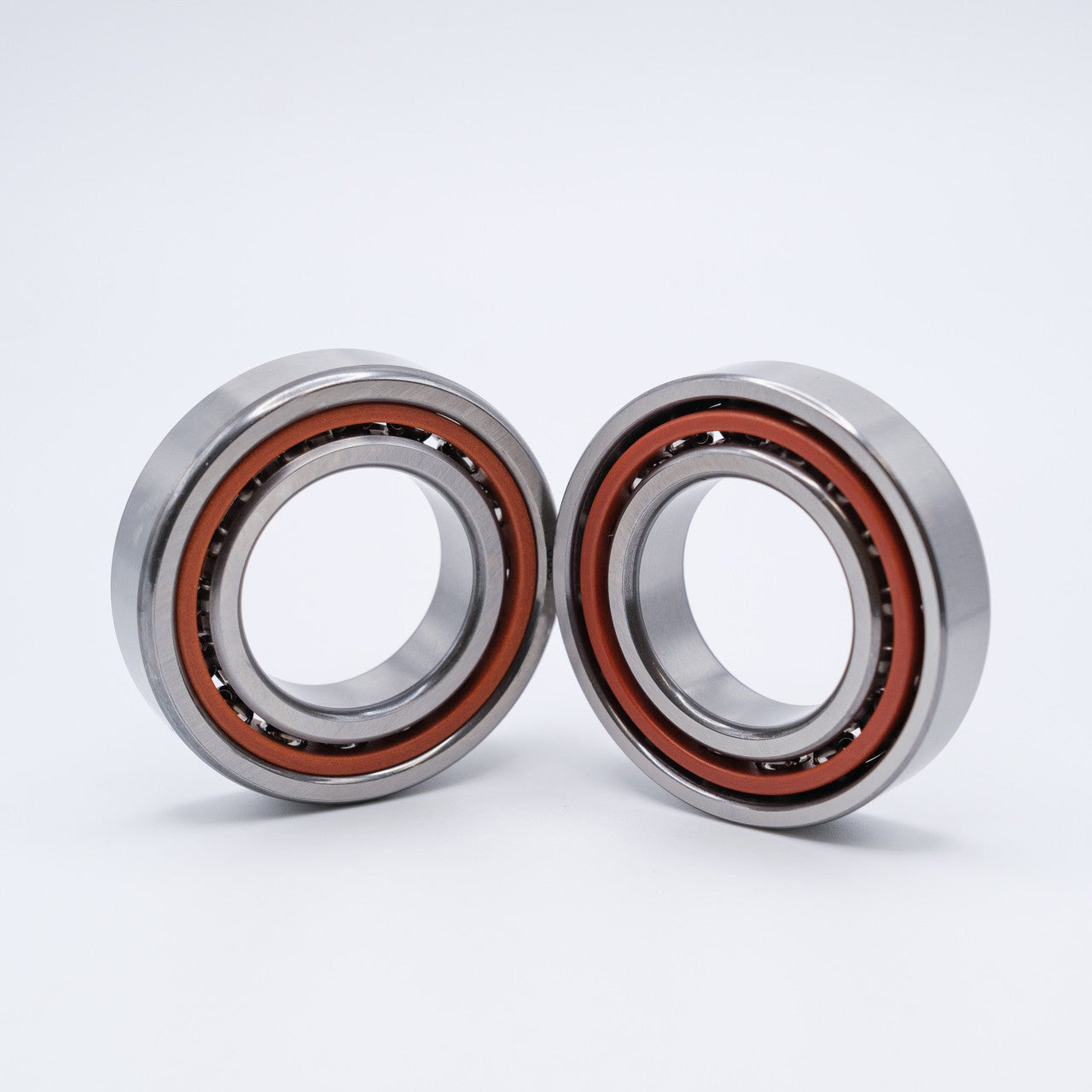

Image is for illustration purposes only.
2MM9102WIDUL specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 15 mm | 0.5906 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 32 mm | 1.2598 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 9 mm | 0.3543 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Super-precision angular contact ball bearing (Timken / Fafnir MM series) | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Set Width | 18 mm (2 bearings) | Stated by the designation | |
| Contact Angle | 15° | Stated by the designation | |
| Preload | Light | Stated by the designation | |
| Arrangement | Duplex universal — matched set of 2, flush ground; may be mounted back-to-back (DB), face-to-face (DF) or tandem (DT) | Stated by the designation | |
2MM9102WIDUL is a super-precision angular contact ball bearing (Timken / Fafnir MM series), 15 mm bore × 32 mm OD × 9 mm wide (0.5906 × 1.2598 × 0.3543 in).
Measurement Type
Metric
Inner Diameter (ID)
15 mm
Outside Diameter (OD)
32 mm
Width
18 mm
Sealing
Open
Precision Class
ABEC 7 | ISO P4
Set Width (mm)
18
Contact Angle
15°
Preload
Light
Arrangement
Duplex universal
Series
2MM
Bearing Type
Super-precision angular contact ball bearing
Other Features
Single Row | Angular Contact | Super High Precision
Component
Assembly
Weight (kg)
0.06
Basic Number
2MM9102
UNSPSC
31171504
