LR50/7-2RSR
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$31.27 USD
Regular price
Sale price
$31.27 USD
Unit price
per
Couldn't load pickup availability
Bore7 mm
0.2756 in
Outside dia.22 mm
0.8661 in
Width10 mm
0.3937 in
TypeYoke-type track roller, double row
SealingContact rubber seals, both sides
Flat-rate shipping — calculated by weight at checkout

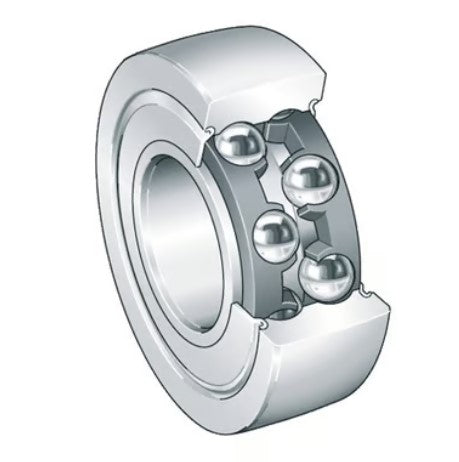

Image is for illustration purposes only.
LR50/7-2RSR specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 7 mm | 0.2756 in | Two independent catalogue sources agree |
| Outside diameter (D) | 22 mm | 0.8661 in | Two independent catalogue sources agree |
| Width (B) | 10 mm | 0.3937 in | Two independent catalogue sources agree |
| Bearing type | Yoke-type track roller, double row | Stated by the designation | |
| Seals / shields | Contact rubber seals, both sides | Stated by the designation | |
LR50/7-2RSR is a yoke-type track roller, double row, 7 mm bore × 22 mm OD × 10 mm wide (0.2756 × 0.8661 × 0.3937 in). It has rubber contact seals on both sides.
The LR50/7-2RSR is a track roller bearing featuring double sealed construction (2RSR) to protect internal components from contamination while retaining lubrication. Track roller bearings are designed with thick-walled outer rings to run directly on track surfaces and guide rails.
LR50/7-2RSR Track Rollers Series Bearing
Measurement Type
Metric
Inner Diameter (ID)
7 mm
Outside Diameter (OD)
22 mm
Width
10 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Other Features
Track Roller Bearing | Thick Outer Ring | Radial Load Design
Component
Assembly
Weight (kg)
0.02
Basic Number
LR50/7
UNSPSC
31171530
