LR50/52RSR
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$27.35 USD
Regular price
Sale price
$27.35 USD
Unit price
per
Couldn't load pickup availability
Bore5 mm
0.1969 in
Outside dia.17 mm
0.6693 in
Width7 mm
0.2756 in
TypeYoke-type track roller, double row
SealingDouble Sealed
Flat-rate shipping — calculated by weight at checkout

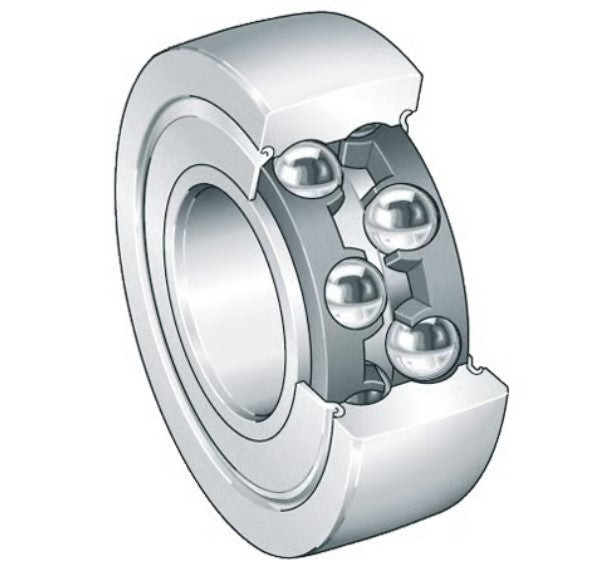

Image is for illustration purposes only.
LR50/52RSR specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 5 mm | 0.1969 in | Two independent catalogue sources agree |
| Outside diameter (D) | 17 mm | 0.6693 in | Two independent catalogue sources agree |
| Width (B) | 7 mm | 0.2756 in | Two independent catalogue sources agree |
| Bearing type | Yoke-type track roller, double row | Stated by the designation | |
| Seals / shields | Double Sealed | Supplier catalogue listing | |
LR50/52RSR is a yoke-type track roller, double row, 5 mm bore × 17 mm OD × 7 mm wide (0.1969 × 0.6693 × 0.2756 in).
The LR50/5-2RSR is a track roller bearing designed to run on track or guide rails with radial and axial load support. It features double rubber seals (2RSR) on both sides to protect against contamination and retain lubrication.
LR50/5-2RSR Track Rollers Series Bearing
Measurement Type
Metric
Inner Diameter (ID)
5 mm
Outside Diameter (OD)
17 mm
Width
7 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Other Features
Track Roller Bearing | Thick Outer Ring | Radial Load Design
Component
Assembly
Weight (kg)
0.01
Basic Number
LR50/5
UNSPSC
31171530
