LR50/6-2RSR
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$31.27 USD
Regular price
Sale price
$31.27 USD
Unit price
per
Couldn't load pickup availability
Bore6 mm
0.2362 in
Outside dia.19 mm
0.748 in
Width9 mm
0.3543 in
TypeYoke-type track roller, double row
SealingContact rubber seals, both sides
Flat-rate shipping — calculated by weight at checkout

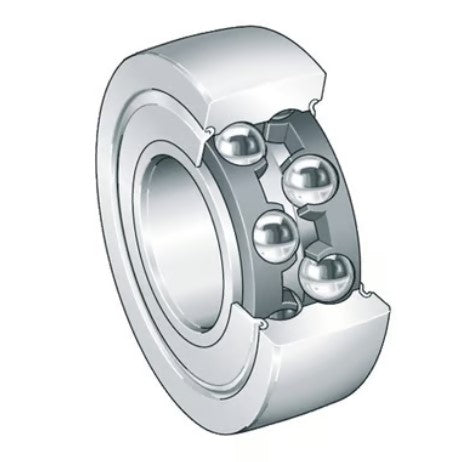

Image is for illustration purposes only.
LR50/6-2RSR specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 6 mm | 0.2362 in | Two independent catalogue sources agree |
| Outside diameter (D) | 19 mm | 0.748 in | Two independent catalogue sources agree |
| Width (B) | 9 mm | 0.3543 in | Two independent catalogue sources agree |
| Bearing type | Yoke-type track roller, double row | Stated by the designation | |
| Seals / shields | Contact rubber seals, both sides | Stated by the designation | |
LR50/6-2RSR is a yoke-type track roller, double row, 6 mm bore × 19 mm OD × 9 mm wide (0.2362 × 0.748 × 0.3543 in). It has rubber contact seals on both sides.
The LR50/6-2RSR is a track roller bearing designed to run directly on track surfaces while supporting radial loads. The 2RSR designation indicates double sealed construction for protection against contaminants in harsh operating environments.
LR50/6-2RSR Track Rollers Series Bearing
Measurement Type
Metric
Inner Diameter (ID)
6 mm
Outside Diameter (OD)
19 mm
Width
9 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Other Features
Track Roller Bearing | Thick Outer Ring | Radial Load Design
Component
Assembly
Weight (kg)
0.02
Basic Number
LR50/6
UNSPSC
31171530
