LR200-2RS
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$22.84 USD
Regular price
Sale price
$22.84 USD
Unit price
per
Couldn't load pickup availability
Bore10 mm
0.3937 in
Outside dia.32 mm
1.2598 in
Width9 mm
0.3543 in
TypeYoke-type track roller, double row
SealingDouble Sealed
Flat-rate shipping — calculated by weight at checkout

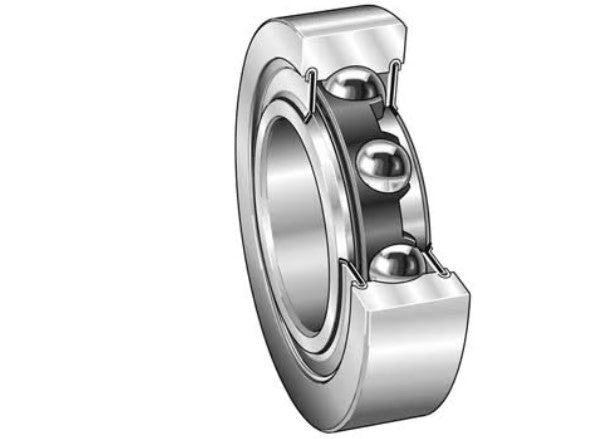

Image is for illustration purposes only.
LR200-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 10 mm | 0.3937 in | Two independent catalogue sources agree |
| Outside diameter (D) | 32 mm | 1.2598 in | Two independent catalogue sources agree |
| Width (B) | 9 mm | 0.3543 in | Two independent catalogue sources agree |
| Bearing type | Yoke-type track roller, double row | Stated by the designation | |
| Seals / shields | Double Sealed | Supplier catalogue listing | |
LR200-2RS is a yoke-type track roller, double row, 10 mm bore × 32 mm OD × 9 mm wide (0.3937 × 1.2598 × 0.3543 in).
The LR200-2RS is a track roller bearing featuring double rubber seals (2RS) for protection against contaminants in demanding industrial environments. Track rollers are cam followers designed to run on tracks or guide rails with outer ring rotation while the inner ring and stud remain stationary.
LR200-2RS LR200NPPU Track Rollers Series Bearing
Measurement Type
Metric
Inner Diameter (ID)
10 mm
Outside Diameter (OD)
32 mm
Width
9 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Other Features
Track Roller Bearing | Thick Outer Ring | Radial Load Design
Component
Assembly
Weight (kg)
0.05
Basic Number
LR200
UNSPSC
31171530
