30209M90KM1
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability
Image is for illustration purposes only.
What 30209M90KM1 means
| Code | Position | Meaning |
|---|---|---|
3 |
Type | Tapered roller bearing (metric) |
0 |
Width series | Width series 0 |
2 |
Diameter series | Diameter series 2 (light) |
09 |
Bore | Bore code 09 × 5 = 45 mm |
M90KM |
Maker code | Manufacturer-specific code, not decoded here. Ask us if it matters for your application. |
1 |
Maker code | Manufacturer-specific code, not decoded here. Ask us if it matters for your application. |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Codes marked "not decoded" are maker-specific; ask us if one matters for your application. Decode any other number with the bearing number decoder.
30209M90KM1 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 45 mm | 1.7717 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 85 mm | 3.3465 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Width, assembled (T) | 20.75 mm | 0.8169 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Bearing type | Tapered roller bearing (metric, ISO 355) | Stated by the designation | |
| Seals / shields | Open | Supplier catalogue listing | |
| Bore | Tapered bore (1:12) | Stated by the designation | |
| Configuration | Matched bearing assembly (90-series assembly suffix) | Stated by the designation | |
Equivalent to / interchanges with
Also listed in manufacturer interchange tables (5): confirm suffix codes before ordering
- SKF 30209C (Timken Interchange Guide)
- TIMKEN 30209M (Timken Interchange Guide)
- FAG 30209A (Timken Interchange Guide)
- NTN 30209 (SKF Master Interchange)
- KOYO 30209 (SKF Master Interchange)
These carry maker-specific suffix codes (cage, lubrication groove, design) that we have not matched one-for-one. The size is the same; check the codes against your application.
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
30209M90KM1 is a tapered roller bearing (metric, ISO 355), 45 mm bore × 85 mm OD × 20.75 mm wide (1.7717 × 3.3465 × 0.8169 in). It has a tapered bore (1:12).
The 30209M-90KM1 is a metric tapered roller bearing assembly with a 45 mm tapered bore (1:12 taper) from the ISO 355 standard 302 series. This matched bearing assembly is supplied as a complete unit with cup and cone components optimized for proper clearance and preload.

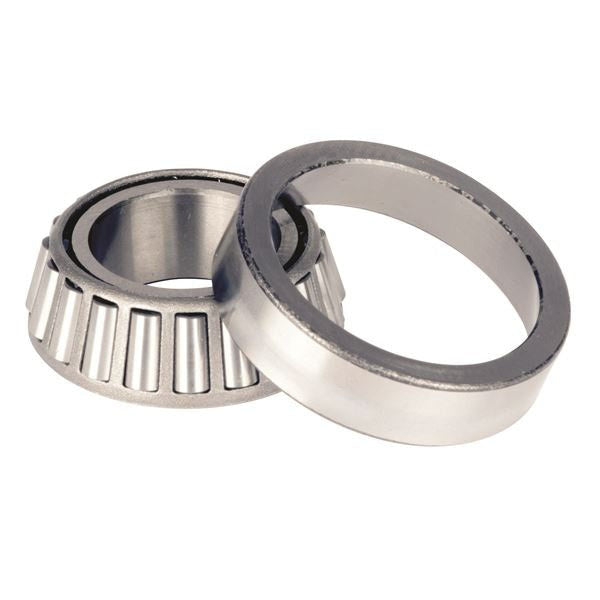

30209M-90KM1 TRB Metric Assembly <4 OD
