30209J
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability

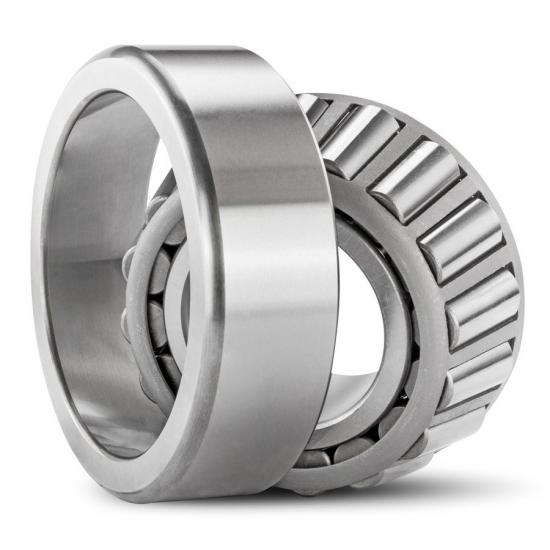

Image is for illustration purposes only.
What 30209J means
| Code | Position | Meaning |
|---|---|---|
3 |
Type | Tapered roller bearing (metric) |
0 |
Width series | Width series 0 |
2 |
Diameter series | Diameter series 2 (light) |
09 |
Bore | Bore code 09 × 5 = 45 mm |
J |
Cage | Pressed steel cage |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
30209J specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 45 mm | 1.7717 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 85 mm | 3.3465 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Width, assembled (T) | 20.75 mm | 0.8169 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Bearing type | Tapered roller bearing (metric, ISO 355) | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Cage | Pressed steel cage | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 30209C | Timken Interchange Guide |
| TIMKEN | 30209M | Timken Interchange Guide |
| NTN | 30209 | SKF Master Interchange |
| KOYO | 30209 | SKF Master Interchange |
Also listed in manufacturer interchange tables (3): confirm suffix codes before ordering
- SKF 30209J2/Q (SKF Master Interchange)
- TIMKEN 30209A (Timken Interchange Guide)
- FAG 30209A (Timken Interchange Guide)
These carry maker-specific suffix codes (cage, lubrication groove, design) that we have not matched one-for-one. The size is the same; check the codes against your application.
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
30209J is a tapered roller bearing (metric, ISO 355), 45 mm bore × 85 mm OD × 20.75 mm wide (1.7717 × 3.3465 × 0.8169 in). It has a pressed steel cage. Published interchange tables list it as equivalent to SKF 30209C, TIMKEN 30209M, NTN 30209, KOYO 30209.
The 30209J is a metric tapered roller bearing conforming to ISO 355 standards, featuring a 45 mm bore diameter and belonging to the 302 series. Tapered roller bearings use conical rolling elements between inner and outer raceways to handle combined radial and axial loads efficiently.
