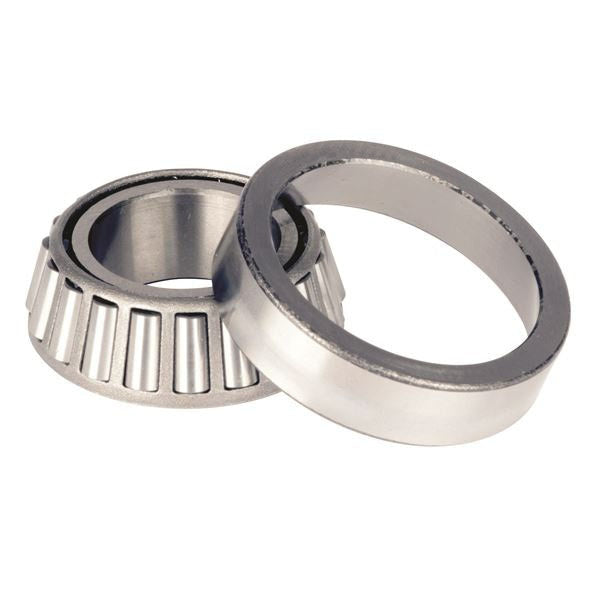

Image is for illustration purposes only.
30207M90KM1
This tapered roller bearing assembly features a 35mm tapered bore (1:12 taper) in the metric ISO 355 standard 302 series. The matched assembly configuration provides both the inner cone and outer cup as a pre-set unit for reliable installation.
Tapered roller bearings are designed to handle combined radial and axial loads, commonly used in automotive wheel hubs, gearboxes, machine tool spindles, and industrial transmissions where thrust capacity and precise positioning are required.
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
35 mm
Outside Diameter (OD)
72 mm
Width
18.25 mm
Sealing
Open
Precision Class
ISO P0
Arrangement
Matched bearing assembly
Cage
Stamped Steel Cage-cone backface clearance:0 mm
Series
302
Bearing Type
Tapered roller bearing
Other Features
Single Row | Tapered Roller Bearing
Component
Assembly
Assembly Components
X30207M (1) | Y30207M (1)
Assembly Number
90KM1
Number of Tapered Rows
1
Weight (kg)
0.35
Basic Number
30207
UNSPSC
31171516
