30206J
Tier-one manufacturer — brand supplied may vary ✓ Verified against manufacturer sourcesCouldn't load pickup availability

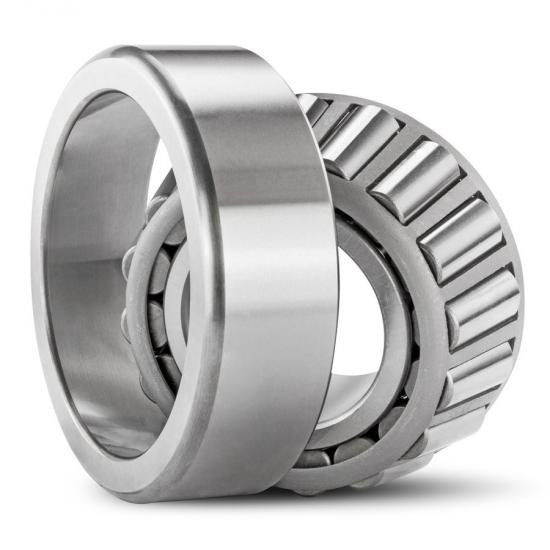

Image is for illustration purposes only.
What 30206J means
| Code | Position | Meaning |
|---|---|---|
3 |
Type | Tapered roller bearing (metric) |
0 |
Width series | Width series 0 |
2 |
Diameter series | Diameter series 2 (light) |
06 |
Bore | Bore code 06 × 5 = 30 mm |
J |
Cage | Pressed steel cage |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
30206J specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 30 mm | 1.1811 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 62 mm | 2.4409 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Width, assembled (T) | 17.25 mm | 0.6791 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Bearing type | Tapered roller bearing (metric, ISO 355) | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Cage | Pressed steel cage | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 30206 | Timken Interchange Guide |
| TIMKEN | 30206M | Timken Interchange Guide |
| FAG | 30206 | Timken Interchange Guide |
Also listed in manufacturer interchange tables (2): confirm suffix codes before ordering
- SKF 30206J2 (Timken Interchange Guide)
- FAG 30206A (Timken Interchange Guide)
These carry maker-specific suffix codes (cage, lubrication groove, design) that we have not matched one-for-one. The size is the same; check the codes against your application.
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
30206J is a tapered roller bearing (metric, ISO 355), 30 mm bore × 62 mm OD × 17.25 mm wide (1.1811 × 2.4409 × 0.6791 in). It has a pressed steel cage. Published interchange tables list it as equivalent to SKF 30206, TIMKEN 30206M, FAG 30206.
The 30206J is a metric tapered roller bearing conforming to ISO 355 standards, featuring a 30mm bore diameter and belonging to the 302 series. Tapered roller bearings use conical rolling elements to handle combined radial and axial loads with high load capacity.
Bore/Inner Diameter Inch: 1.181
Bore/Inner Diameter mm: 30
