30205M90KM1
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeCouldn't load pickup availability
Image is for illustration purposes only.
What 30205M90KM1 means
| Code | Position | Meaning |
|---|---|---|
3 |
Type | Tapered roller bearing (metric) |
0 |
Width series | Width series 0 |
2 |
Diameter series | Diameter series 2 (light) |
05 |
Bore | Bore code 05 × 5 = 25 mm |
M90KM |
Maker code | Manufacturer-specific code, not decoded here. Ask us if it matters for your application. |
1 |
Maker code | Manufacturer-specific code, not decoded here. Ask us if it matters for your application. |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Codes marked "not decoded" are maker-specific; ask us if one matters for your application. Decode any other number with the bearing number decoder.
30205M90KM1 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 25 mm | 0.9843 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 52 mm | 2.0472 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Width, assembled (T) | 16.25 mm | 0.6398 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Bearing type | Tapered roller bearing (metric, ISO 355) | Stated by the designation | |
| Seals / shields | Open | Supplier catalogue listing | |
| Bore | Tapered bore (1:12) | Stated by the designation | |
| Cage | Stamped Steel Cage-cone backface clearance:0 mm | Supplier catalogue listing | |
| Configuration | Matched bearing assembly (90-series assembly suffix) | Stated by the designation | |
Equivalent to / interchanges with
Also listed in manufacturer interchange tables (4): confirm suffix codes before ordering
- SKF 30205 (Timken Interchange Guide)
- TIMKEN 30205 (Timken Interchange Guide)
- FAG 30205A (Timken Interchange Guide)
- NSK 30205JA (SKF Master Interchange)
These carry maker-specific suffix codes (cage, lubrication groove, design) that we have not matched one-for-one. The size is the same; check the codes against your application.
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
30205M90KM1 is a tapered roller bearing (metric, ISO 355), 25 mm bore × 52 mm OD × 16.25 mm wide (0.9843 × 2.0472 × 0.6398 in). It has a tapered bore (1:12).
This is a metric tapered roller bearing assembly with a 25 mm tapered bore (1:12 taper) in the 302 series. The matched assembly configuration includes both inner and outer rings with rollers pre-assembled for immediate installation.

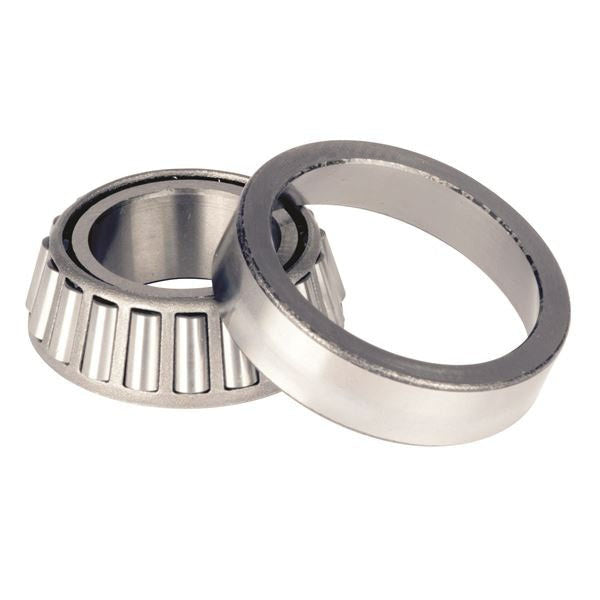

30205M-90KM1 TRB Metric Assembly <4 OD
