30210J
Tier-one manufacturer — brand supplied may vary ✓ Verified against manufacturer sourcesCouldn't load pickup availability

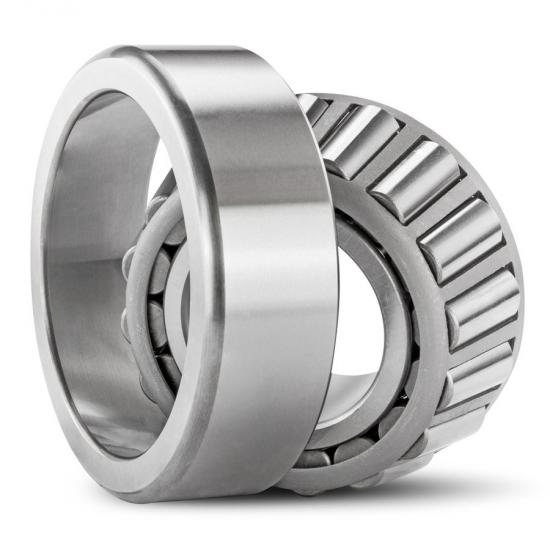

Image is for illustration purposes only.
What 30210J means
| Code | Position | Meaning |
|---|---|---|
3 |
Type | Tapered roller bearing (metric) |
0 |
Width series | Width series 0 |
2 |
Diameter series | Diameter series 2 (light) |
10 |
Bore | Bore code 10 × 5 = 50 mm |
J |
Cage | Pressed steel cage |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
30210J specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 50 mm | 1.9685 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 90 mm | 3.5433 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Width, assembled (T) | 21.75 mm | 0.8563 in | Maker's catalogue (PEER Bearing), confirmed by supplier data |
| Bearing type | Tapered roller bearing (metric, ISO 355) | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Cage | Pressed steel cage | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
Equivalent to / interchanges with
| Brand | Part number | Basis |
|---|---|---|
| SKF | 30210J | Timken Interchange Guide |
| TIMKEN | 30210 | Timken Interchange Guide |
Also listed in manufacturer interchange tables (4): confirm suffix codes before ordering
- SKF 30210/Q (Timken agricultural interchange)
- TIMKEN 30210-90KA1 (Timken agricultural interchange)
- FAG 30210A (Timken Interchange Guide)
- NTN 4T-30210 (Timken agricultural interchange)
These carry maker-specific suffix codes (cage, lubrication groove, design) that we have not matched one-for-one. The size is the same; check the codes against your application.
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
30210J is a tapered roller bearing (metric, ISO 355), 50 mm bore × 90 mm OD × 21.75 mm wide (1.9685 × 3.5433 × 0.8563 in). It has a pressed steel cage. Published interchange tables list it as equivalent to SKF 30210J, TIMKEN 30210.
The 30210J is a metric tapered roller bearing with a 50 mm bore diameter, designed to accommodate combined radial and axial loads in a single direction. The tapered geometry allows the bearing to handle thrust loads while maintaining high radial load capacity.
Outside Diameter Inch: 3.543
Outside Diameter mm: 90
