LR5304-2RS
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$69.23 USD
Regular price
Sale price
$69.23 USD
Unit price
per
Couldn't load pickup availability
Bore20 mm
0.7874 in
Outside dia.62 mm
2.4409 in
Width22.2 mm
0.874 in
TypeYoke-type track roller, double row
SealingDouble Sealed
Flat-rate shipping — calculated by weight at checkout

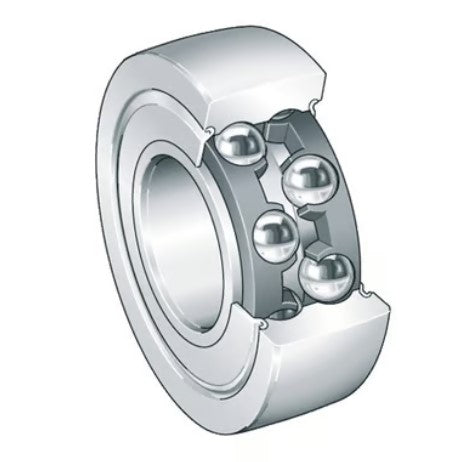

Image is for illustration purposes only.
LR5304-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 20 mm | 0.7874 in | Two independent catalogue sources agree |
| Outside diameter (D) | 62 mm | 2.4409 in | Two independent catalogue sources agree |
| Width (B) | 22.2 mm | 0.874 in | Two independent catalogue sources agree |
| Bearing type | Yoke-type track roller, double row | Stated by the designation | |
| Seals / shields | Double Sealed | Supplier catalogue listing | |
LR5304-2RS is a yoke-type track roller, double row, 20 mm bore × 62 mm OD × 22.2 mm wide (0.7874 × 2.4409 × 0.874 in).
The LR5304-2RS is a track roller bearing featuring double rubber seals (2RS) for protection against contaminants while retaining lubrication. Track roller bearings are designed with thick-walled outer rings to run directly on track surfaces and support radial loads in cam drive and linear motion systems.
Measurement Type
Metric
Inner Diameter (ID)
20 mm
Outside Diameter (OD)
62 mm
Width
22.2 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Other Features
Track Roller Bearing | Thick Outer Ring | Radial Load Design
Component
Assembly
Weight (kg)
0.34
Basic Number
LR5304
UNSPSC
31171530
