LR53052RS
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$75.38 USD
Regular price
Sale price
$75.38 USD
Unit price
per
Couldn't load pickup availability
Bore25 mm
0.9843 in
Outside dia.72 mm
2.8346 in
Width25.4 mm
1 in
TypeYoke-type track roller, double row
SealingDouble Sealed
Flat-rate shipping — calculated by weight at checkout
Image is for illustration purposes only.
LR53052RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 25 mm | 0.9843 in | Two independent catalogue sources agree |
| Outside diameter (D) | 72 mm | 2.8346 in | Two independent catalogue sources agree |
| Width (B) | 25.4 mm | 1 in | Two independent catalogue sources agree |
| Bearing type | Yoke-type track roller, double row | Stated by the designation | |
| Seals / shields | Double Sealed | Supplier catalogue listing | |
LR53052RS is a yoke-type track roller, double row, 25 mm bore × 72 mm OD × 25.4 mm wide (0.9843 × 2.8346 × 1 in).

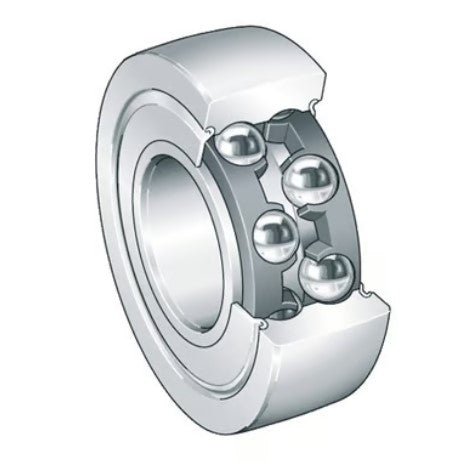

The LR5305-2RS is a track roller bearing with double rubber seals (2RS) designed to support and guide loads along tracks or rails. The sealed design provides protection against contamination while retaining internal lubrication for extended service life.
LR5305-2RS LR5305NPPU Track Rollers Series Bearing
Measurement Type
Metric
Inner Diameter (ID)
25 mm
Outside Diameter (OD)
72 mm
Width
25.4 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Other Features
Track Roller Bearing | Thick Outer Ring | Radial Load Design
Component
Assembly
Weight (kg)
0.5
Basic Number
LR5305
UNSPSC
31171530
