LR5306-ZZ
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$84.62 USD
Regular price
Sale price
$84.62 USD
Unit price
per
Couldn't load pickup availability
Bore30 mm
1.1811 in
Outside dia.80 mm
3.1496 in
Width30.2 mm
1.189 in
TypeYoke-type track roller, double row
SealingMetal shields, both sides
Flat-rate shipping — calculated by weight at checkout

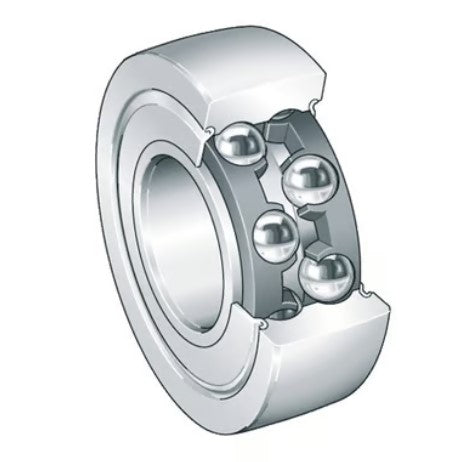

Image is for illustration purposes only.
LR5306-ZZ specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 30 mm | 1.1811 in | Two independent catalogue sources agree |
| Outside diameter (D) | 80 mm | 3.1496 in | Two independent catalogue sources agree |
| Width (B) | 30.2 mm | 1.189 in | Two independent catalogue sources agree |
| Bearing type | Yoke-type track roller, double row | Stated by the designation | |
| Seals / shields | Metal shields, both sides | Stated by the designation | |
LR5306-ZZ is a yoke-type track roller, double row, 30 mm bore × 80 mm OD × 30.2 mm wide (1.1811 × 3.1496 × 1.189 in). It has metal shields on both sides.
The LR5306-ZZ is a track roller bearing designed to run directly on track surfaces or guide rails. It features double metal shields (ZZ) to protect the internal components from contaminants while allowing for reliable operation in industrial environments.
LR5306-ZZ LR5306KDDU Track Rollers Series Bearing
Measurement Type
Metric
Inner Diameter (ID)
30 mm
Outside Diameter (OD)
80 mm
Width
30.2 mm
Sealing
Double Shielded
Precision Class
ABEC 1 | ISO P0
Other Features
Track Roller Bearing | Thick Outer Ring | Radial Load Design
Component
Assembly
Weight (kg)
0.67
Basic Number
LR5306
UNSPSC
31171530
