LR5207-2RS

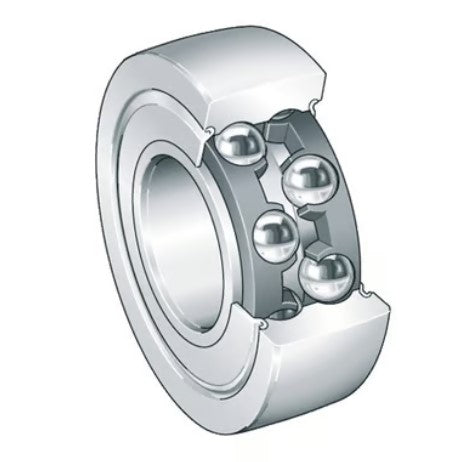

The LR5207-2RS is a track roller bearing with double rubber seals (2RS) that provide protection against contamination while retaining lubrication. Track roller bearings feature a thick-walled outer ring designed to run directly on track surfaces or guide rails.
These bearings are commonly used in cam followers, conveyor systems, linear motion equipment, and material handling applications where they guide or support loads along tracks. The sealed design makes them suitable for environments with dust or moisture exposure.
LR5207-2RS LR5207NPPU Track Rollers Series Bearing
For large orders ($2000+) please inquire by email.
Measurement Type
Metric
Inner Diameter (ID)
35 mm
Outside Diameter (OD)
80 mm
Width
27 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Other Features
Track Roller Bearing | Thick Outer Ring | Radial Load Design
Component
Assembly
Weight (kg)
0.66
Basic Number
LR5207
UNSPSC
31171530
