LR5200-2RS
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$49.02 USD
Regular price
Sale price
$49.02 USD
Unit price
per
Couldn't load pickup availability
Bore10 mm
0.3937 in
Outside dia.32 mm
1.2598 in
Width14 mm
0.5512 in
TypeYoke-type track roller, double row
SealingDouble Sealed
Flat-rate shipping — calculated by weight at checkout

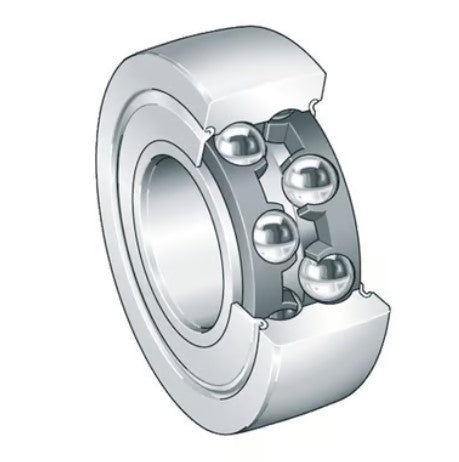

Image is for illustration purposes only.
LR5200-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 10 mm | 0.3937 in | Two independent catalogue sources agree |
| Outside diameter (D) | 32 mm | 1.2598 in | Two independent catalogue sources agree |
| Width (B) | 14 mm | 0.5512 in | Two independent catalogue sources agree |
| Bearing type | Yoke-type track roller, double row | Stated by the designation | |
| Seals / shields | Double Sealed | Supplier catalogue listing | |
LR5200-2RS is a yoke-type track roller, double row, 10 mm bore × 32 mm OD × 14 mm wide (0.3937 × 1.2598 × 0.5512 in).
The LR5200-2RS is a track roller bearing featuring double rubber seals (2RS) for protection against contaminants and lubricant retention. Track roller bearings are designed with a thick-walled outer ring to run directly on track surfaces and guide rails.
LR5200-2RS LR5200NPPU Track Rollers Series Bearing
Measurement Type
Metric
Inner Diameter (ID)
10 mm
Outside Diameter (OD)
32 mm
Width
14 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Other Features
Track Roller Bearing | Thick Outer Ring | Radial Load Design
Component
Assembly
Weight (kg)
0.07
Basic Number
LR5200
UNSPSC
31171530
