LR5005-2RS
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$57.84 USD
Regular price
Sale price
$57.84 USD
Unit price
per
Couldn't load pickup availability
Bore25 mm
0.9843 in
Outside dia.52 mm
2.0472 in
Width16 mm
0.6299 in
TypeYoke-type track roller, double row
SealingDouble Sealed
Flat-rate shipping — calculated by weight at checkout

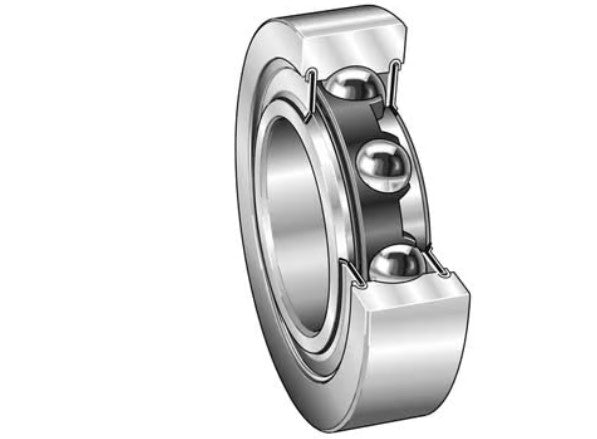

Image is for illustration purposes only.
LR5005-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 25 mm | 0.9843 in | Two independent catalogue sources agree |
| Outside diameter (D) | 52 mm | 2.0472 in | Two independent catalogue sources agree |
| Width (B) | 16 mm | 0.6299 in | Two independent catalogue sources agree |
| Bearing type | Yoke-type track roller, double row | Stated by the designation | |
| Seals / shields | Double Sealed | Supplier catalogue listing | |
LR5005-2RS is a yoke-type track roller, double row, 25 mm bore × 52 mm OD × 16 mm wide (0.9843 × 2.0472 × 0.6299 in).
The LR5005-2RS is a track roller bearing featuring double rubber seals (2RS) that provide protection against contamination while retaining lubrication. Track rollers are designed with thick-walled outer rings to support loads directly on the outer ring while running on track or guide surfaces.
Series: LR
Model Number: LR5005 2RS
Bore/Inner Diameter Inch: 0.9843
Bore/Inner Diameter mm: 25
Outside Diameter Inch: 2.0472
Outside Diameter mm: 52
Measurement Type
Metric
Inner Diameter (ID)
25 mm
Outside Diameter (OD)
52 mm
Width
16 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Other Features
Track Roller Bearing | Thick Outer Ring | Radial Load Design
Component
Assembly
Weight (kg)
0.15
Basic Number
LR5005
UNSPSC
31171530
