LR5000-2RS
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$34.31 USD
Regular price
Sale price
$34.31 USD
Unit price
per
Couldn't load pickup availability
Bore10 mm
0.3937 in
Outside dia.28 mm
1.1024 in
Width12 mm
0.4724 in
TypeYoke-type track roller, double row
SealingDouble Sealed
Flat-rate shipping — calculated by weight at checkout

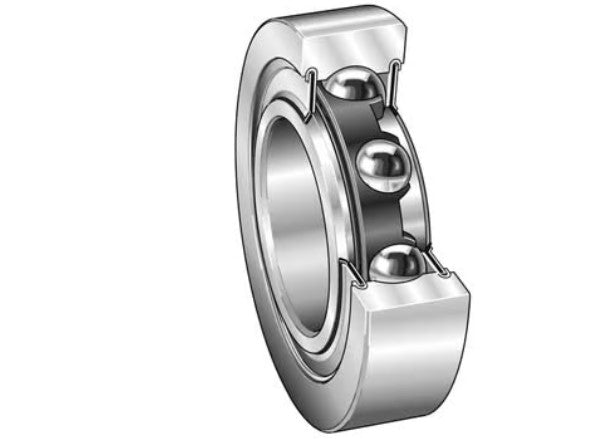

Image is for illustration purposes only.
LR5000-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 10 mm | 0.3937 in | Two independent catalogue sources agree |
| Outside diameter (D) | 28 mm | 1.1024 in | Two independent catalogue sources agree |
| Width (B) | 12 mm | 0.4724 in | Two independent catalogue sources agree |
| Bearing type | Yoke-type track roller, double row | Stated by the designation | |
| Seals / shields | Double Sealed | Supplier catalogue listing | |
LR5000-2RS is a yoke-type track roller, double row, 10 mm bore × 28 mm OD × 12 mm wide (0.3937 × 1.1024 × 0.4724 in).
The LR5000-2RS is a track roller bearing featuring double rubber seals (2RS) for protection against contaminants and lubricant retention. Track roller bearings are designed with thick-walled outer rings to run directly on track surfaces and guide rails.
LR5000-2RS LR5000NPPU Track Rollers Series Bearing
Measurement Type
Metric
Inner Diameter (ID)
10 mm
Outside Diameter (OD)
28 mm
Width
12 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Other Features
Track Roller Bearing | Thick Outer Ring | Radial Load Design
Component
Assembly
Weight (kg)
0.03
Basic Number
LR5000
UNSPSC
31171530
