LR5201-ZZ
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Unit price
per
Couldn't load pickup availability
Bore12 mm
0.4724 in
Outside dia.35 mm
1.378 in
Width15.9 mm
0.626 in
TypeYoke-type track roller, double row
SealingMetal shields, both sides
Flat-rate shipping — calculated by weight at checkout

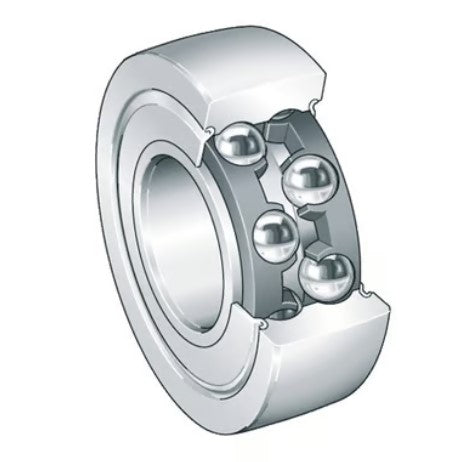

Image is for illustration purposes only.
LR5201-ZZ specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 12 mm | 0.4724 in | Two independent catalogue sources agree |
| Outside diameter (D) | 35 mm | 1.378 in | Two independent catalogue sources agree |
| Width (B) | 15.9 mm | 0.626 in | Two independent catalogue sources agree |
| Bearing type | Yoke-type track roller, double row | Stated by the designation | |
| Seals / shields | Metal shields, both sides | Stated by the designation | |
LR5201-ZZ is a yoke-type track roller, double row, 12 mm bore × 35 mm OD × 15.9 mm wide (0.4724 × 1.378 × 0.626 in). It has metal shields on both sides.
The LR5201-ZZ is a track roller bearing with double metal shields (ZZ) designed to support and guide linear motion on track systems. Track rollers feature a thick-walled outer ring that runs directly on guide rails or cam tracks, with the shield configuration providing protection against contaminants.
Measurement Type
Metric
Inner Diameter (ID)
12 mm
Outside Diameter (OD)
35 mm
Width
15.9 mm
Sealing
Double Shielded
Precision Class
ABEC 1 | ISO P0
Other Features
Track Roller Bearing | Thick Outer Ring | Radial Load Design
Component
Assembly
Weight (kg)
0.08
Basic Number
LR5201
UNSPSC
31171530
