LR5201XZZ
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$53.92 USD
Regular price
Sale price
$53.92 USD
Unit price
per
Couldn't load pickup availability
Bore12 mm
0.4724 in
Outside dia.35 mm
1.378 in
Width15.9 mm
0.626 in
TypeYoke-type track roller, double row
SealingMetal shields, both sides
Flat-rate shipping — calculated by weight at checkout

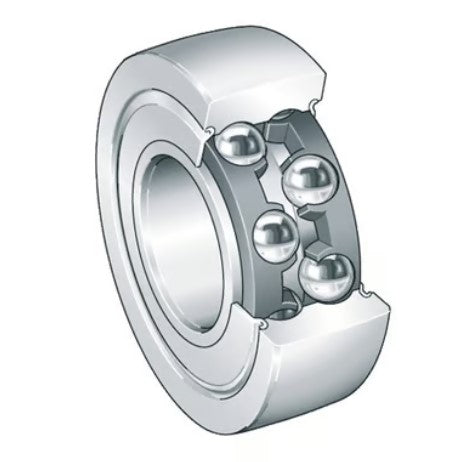

Image is for illustration purposes only.
LR5201XZZ specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 12 mm | 0.4724 in | Two independent catalogue sources agree |
| Outside diameter (D) | 35 mm | 1.378 in | Two independent catalogue sources agree |
| Width (B) | 15.9 mm | 0.626 in | Two independent catalogue sources agree |
| Bearing type | Yoke-type track roller, double row | Stated by the designation | |
| Seals / shields | Metal shields, both sides | Stated by the designation | |
LR5201XZZ is a yoke-type track roller, double row, 12 mm bore × 35 mm OD × 15.9 mm wide (0.4724 × 1.378 × 0.626 in). It has metal shields on both sides.
The LR5201X-ZZ is a double-shielded track roller bearing designed to run directly on track surfaces or guide rails. The double metal shields (ZZ/KDD designation) provide protection from contaminants while retaining lubrication.
LR5201X-ZZ LR5201KDD Track Rollers Series Bearing
Measurement Type
Metric
Inner Diameter (ID)
12 mm
Outside Diameter (OD)
35 mm
Width
15.9 mm
Sealing
Double Shielded
Precision Class
ABEC 1 | ISO P0
Other Features
Track Roller Bearing | Thick Outer Ring | Radial Load Design
Component
Assembly
Weight (kg)
0.08
Basic Number
LR5201X
UNSPSC
31171530
