LR5202-ZZ
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$49.02 USD
Regular price
Sale price
$49.02 USD
Unit price
per
Couldn't load pickup availability
Bore15 mm
0.5906 in
Outside dia.40 mm
1.5748 in
Width15.9 mm
0.626 in
TypeYoke-type track roller, double row
SealingMetal shields, both sides
Flat-rate shipping — calculated by weight at checkout
Image is for illustration purposes only.
LR5202-ZZ specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 15 mm | 0.5906 in | Two independent catalogue sources agree |
| Outside diameter (D) | 40 mm | 1.5748 in | Two independent catalogue sources agree |
| Width (B) | 15.9 mm | 0.626 in | Two independent catalogue sources agree |
| Bearing type | Yoke-type track roller, double row | Stated by the designation | |
| Seals / shields | Metal shields, both sides | Stated by the designation | |
LR5202-ZZ is a yoke-type track roller, double row, 15 mm bore × 40 mm OD × 15.9 mm wide (0.5906 × 1.5748 × 0.626 in). It has metal shields on both sides.
The LR5202-ZZ is a track roller bearing with double metal shield seals, designed to support and guide linear motion along track systems. This bearing features a stud-type design with a thick-walled outer ring to handle radial loads and compensate for misalignment in cam drive and conveyor applications.

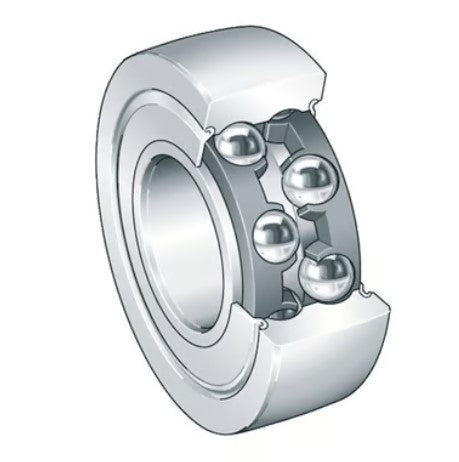

LR5202-ZZ LR5202KDDU Track Rollers Series Bearing
Measurement Type
Metric
Inner Diameter (ID)
15 mm
Outside Diameter (OD)
40 mm
Width
15.9 mm
Sealing
Double Shielded
Precision Class
ABEC 1 | ISO P0
Other Features
Track Roller Bearing | Thick Outer Ring | Radial Load Design
Component
Assembly
Weight (kg)
0.11
Basic Number
LR5202
UNSPSC
31171530
