LR5203-ZZ
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$53.92 USD
Regular price
Sale price
$53.92 USD
Unit price
per
Couldn't load pickup availability
Bore17 mm
0.6693 in
Outside dia.47 mm
1.8504 in
Width17.5 mm
0.689 in
TypeYoke-type track roller, double row
SealingMetal shields, both sides
Flat-rate shipping — calculated by weight at checkout

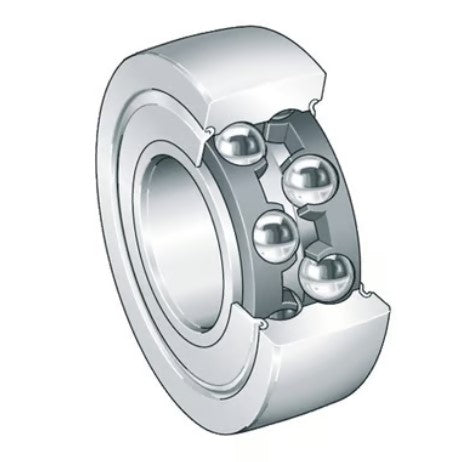

Image is for illustration purposes only.
LR5203-ZZ specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 17 mm | 0.6693 in | Two independent catalogue sources agree |
| Outside diameter (D) | 47 mm | 1.8504 in | Two independent catalogue sources agree |
| Width (B) | 17.5 mm | 0.689 in | Two independent catalogue sources agree |
| Bearing type | Yoke-type track roller, double row | Stated by the designation | |
| Seals / shields | Metal shields, both sides | Stated by the designation | |
LR5203-ZZ is a yoke-type track roller, double row, 17 mm bore × 47 mm OD × 17.5 mm wide (0.6693 × 1.8504 × 0.689 in). It has metal shields on both sides.
The LR5203-ZZ is a track roller bearing with double metal shields (ZZ) designed to support and guide linear motion along tracks or rails. This bearing features a thick-walled outer ring that serves as the running surface, making it suitable for direct mounting on stud-type shafts.
LR5203-ZZ LR5203KDDU Track Rollers Series Bearing
Measurement Type
Metric
Inner Diameter (ID)
17 mm
Outside Diameter (OD)
47 mm
Width
17.5 mm
Sealing
Double Shielded
Precision Class
ABEC 1 | ISO P0
Other Features
Track Roller Bearing | Thick Outer Ring | Radial Load Design
Component
Assembly
Weight (kg)
0.17
Basic Number
LR5203
UNSPSC
31171530
