LR5203X-ZZ
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesRegular price
$57.27 USD
Regular price
Sale price
$57.27 USD
Unit price
per
Couldn't load pickup availability
Bore17 mm
0.6693 in
Outside dia.47 mm
1.8504 in
Width17.5 mm
0.689 in
TypeYoke-type track roller, double row
SealingMetal shields, both sides
Flat-rate shipping — calculated by weight at checkout
Image is for illustration purposes only.
LR5203X-ZZ specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 17 mm | 0.6693 in | Two independent catalogue sources agree |
| Outside diameter (D) | 47 mm | 1.8504 in | Two independent catalogue sources agree |
| Width (B) | 17.5 mm | 0.689 in | Two independent catalogue sources agree |
| Bearing type | Yoke-type track roller, double row | Stated by the designation | |
| Seals / shields | Metal shields, both sides | Stated by the designation | |
LR5203X-ZZ is a yoke-type track roller, double row, 17 mm bore × 47 mm OD × 17.5 mm wide (0.6693 × 1.8504 × 0.689 in). It has metal shields on both sides.
The LR5203X-ZZ is a double-shielded track roller bearing designed to run directly on track surfaces or guide rails. The ZZ (also designated KDD) suffix indicates metal shields on both sides to protect internal components from contamination while retaining lubrication.

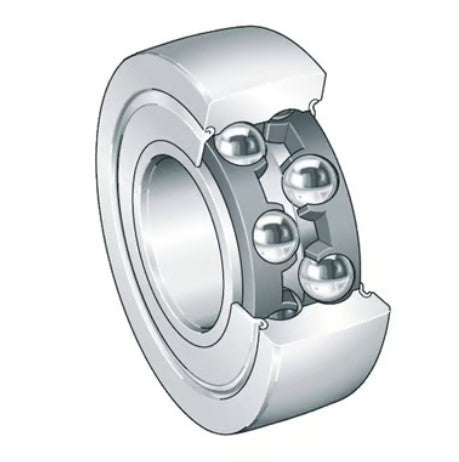

LR5203X-ZZ LR5203KDD Track Rollers Series Bearing
Measurement Type
Metric
Inner Diameter (ID)
17 mm
Outside Diameter (OD)
47 mm
Width
17.5 mm
Sealing
Double Shielded
Precision Class
ABEC 1 | ISO P0
Bearing Type
Track Roller Bearing
Other Features
Track Roller Bearing | Thick Outer Ring | Radial Load Design
Component
Assembly
Weight (kg)
0.17
Basic Number
LR5203X
UNSPSC
31171530
