HM907643/HM907614

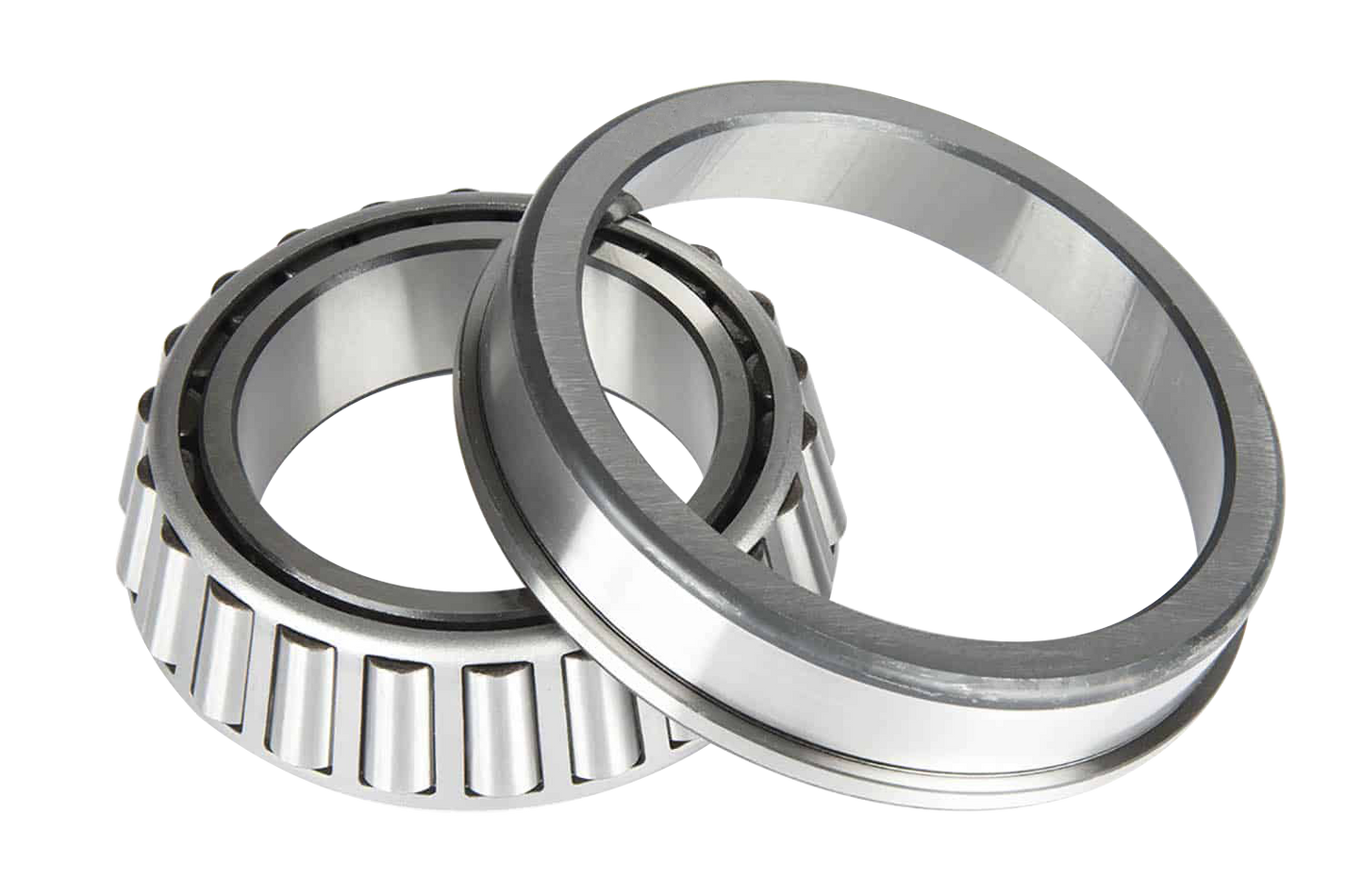

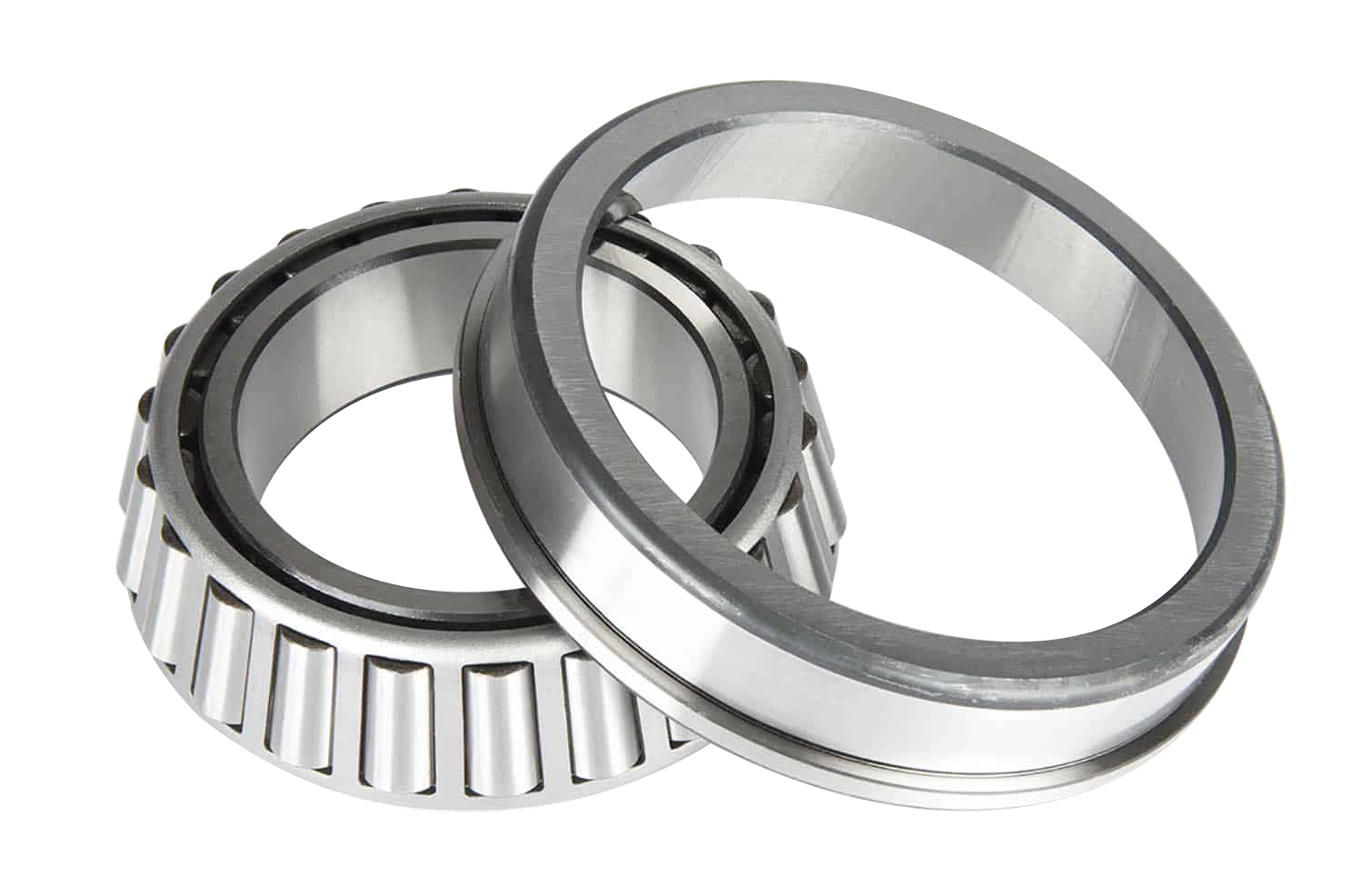

The HM907643/HM907614 is a tapered roller bearing set consisting of a cone (inner ring with rollers and cage) and cup (outer ring). This inch series set-type bearing features a single row of tapered rollers arranged to handle combined radial and thrust loads.
Tapered roller bearing sets are commonly used in automotive wheel hubs, industrial gearboxes, conveyor systems, and heavy equipment applications where separable inner and outer rings allow for precise axial positioning and adjustment during installation.
For large orders ($2000+) please inquire by email.
Measurement Type
Imperial
Inner Diameter (ID)
2 in
Outside Diameter (OD)
4.375 mm / 4 3/8 in
Width
1 3/16 in
Sealing
Open
Precision Class
ISO P0
Arrangement
One
Ball Material
Case Carburized Steel
Bearing Type
Tapered Roller Bearing
Other Features
Single Row | Tapered Roller Bearing
Component
Assembly
Number of Tapered Rows
1
Weight (kg)
1.34
Basic Number
HM907643/HM907614
UNSPSC
31171516
