HR32316J

Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agree
$201.22 USD
$201.22 USD
Sale Sold out
Bore80 mm 3.1496 in
Outside dia.170 mm 6.6929 in
Width, assembled61.5 mm 2.4213 in
TypeTapered Roller Bearing
SealingOpen
Flat-rate shipping — calculated by weight at checkout
  • HR32316J Taper Bearings
1 1

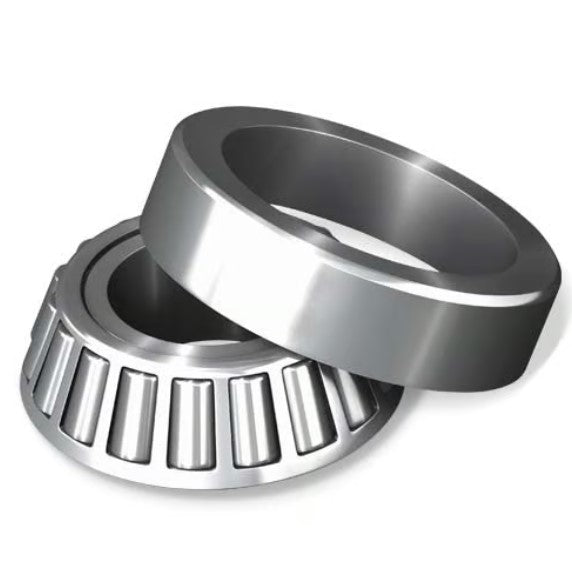

Image is for illustration purposes only.

HR32316J specifications

Specification Metric Inch Basis
Bore (d) 80 mm 3.1496 in Maker's catalogue (PEER Bearing), confirmed by supplier data
Outside diameter (D) 170 mm 6.6929 in Maker's catalogue (PEER Bearing), confirmed by supplier data
Width, assembled (T) 61.5 mm 2.4213 in Maker's catalogue (PEER Bearing), confirmed by supplier data
Bearing type Tapered Roller Bearing Supplier catalogue listing
Seals / shields Open Supplier catalogue listing

HR32316J is a tapered Roller Bearing, 80 mm bore × 170 mm OD × 61.5 mm wide (3.1496 × 6.6929 × 2.4213 in).

The HR32316J is a metric tapered roller bearing featuring a single row design with a separable inner ring and roller assembly. Tapered roller bearings utilize conical raceways and tapered rollers to accommodate combined radial and axial loads, with the ability to handle significant thrust forces in one direction.
