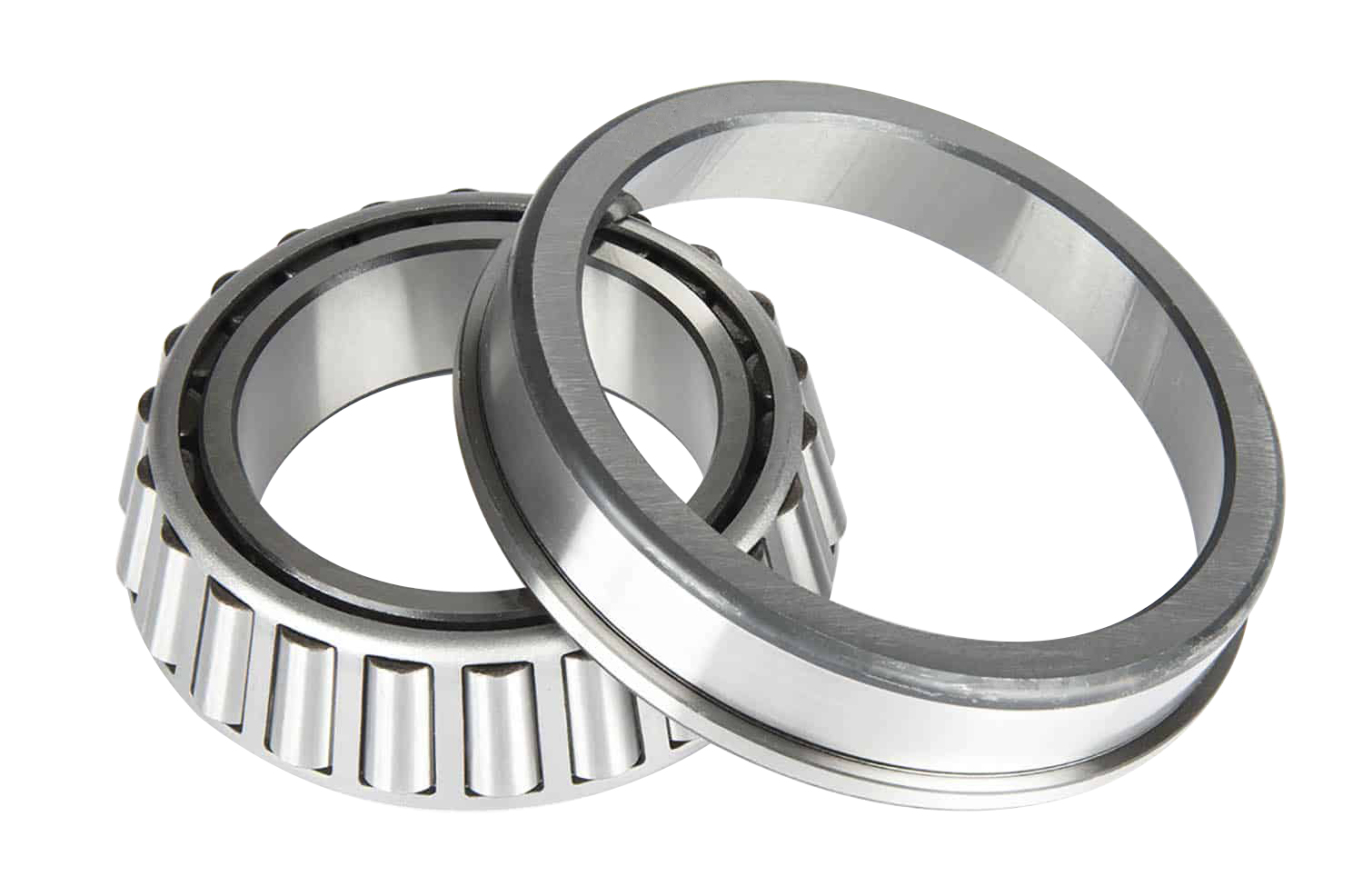

Image is for illustration purposes only.
HM813849/HM813810
The HM813849/HM813810 is a tapered roller bearing set consisting of a cone (inner ring with rollers and cage) and cup (outer ring). This single-row tapered roller bearing design provides high radial and thrust load capacity through its tapered raceway geometry.
Commonly used in heavy-duty automotive axles, truck wheel hubs, transmissions, and industrial gearboxes where combined radial and axial loads are present. The set configuration ensures matched components for optimal performance and simplified installation.
Interchange / cross reference
ALLISC 813323ALLISC 06315873ALLISC 631587AM 111E050653ARAMCO 1331967800CHRYSL 1566147CLARK 226026DEERE 4X3706DEERE JD9087DELCO 81384381EATON 113869EATON 590320EATON 6900969FIAT-A 70631587FORD XN561098
Cross-references are provided as a guide — verify dimensions and fit for your application.
For large orders ($2000+) please inquire by email.
Measurement Type
Imperial
Inner Diameter (ID)
2 4/5 in
Outside Diameter (OD)
5 in
Width
1 7/16 in
Sealing
Open
Precision Class
ISO P0
Arrangement
One
Ball Material
Case carburized steel
Bearing Type
Tapered Roller Bearing
Other Features
Single Row | Tapered Roller Bearing
Component
Assembly
Number of Tapered Rows
1
Weight (kg)
2.28
Basic Number
HM813849/HM813810
UNSPSC
31171516
