Image is for illustration purposes only.
HM807035/HM807010

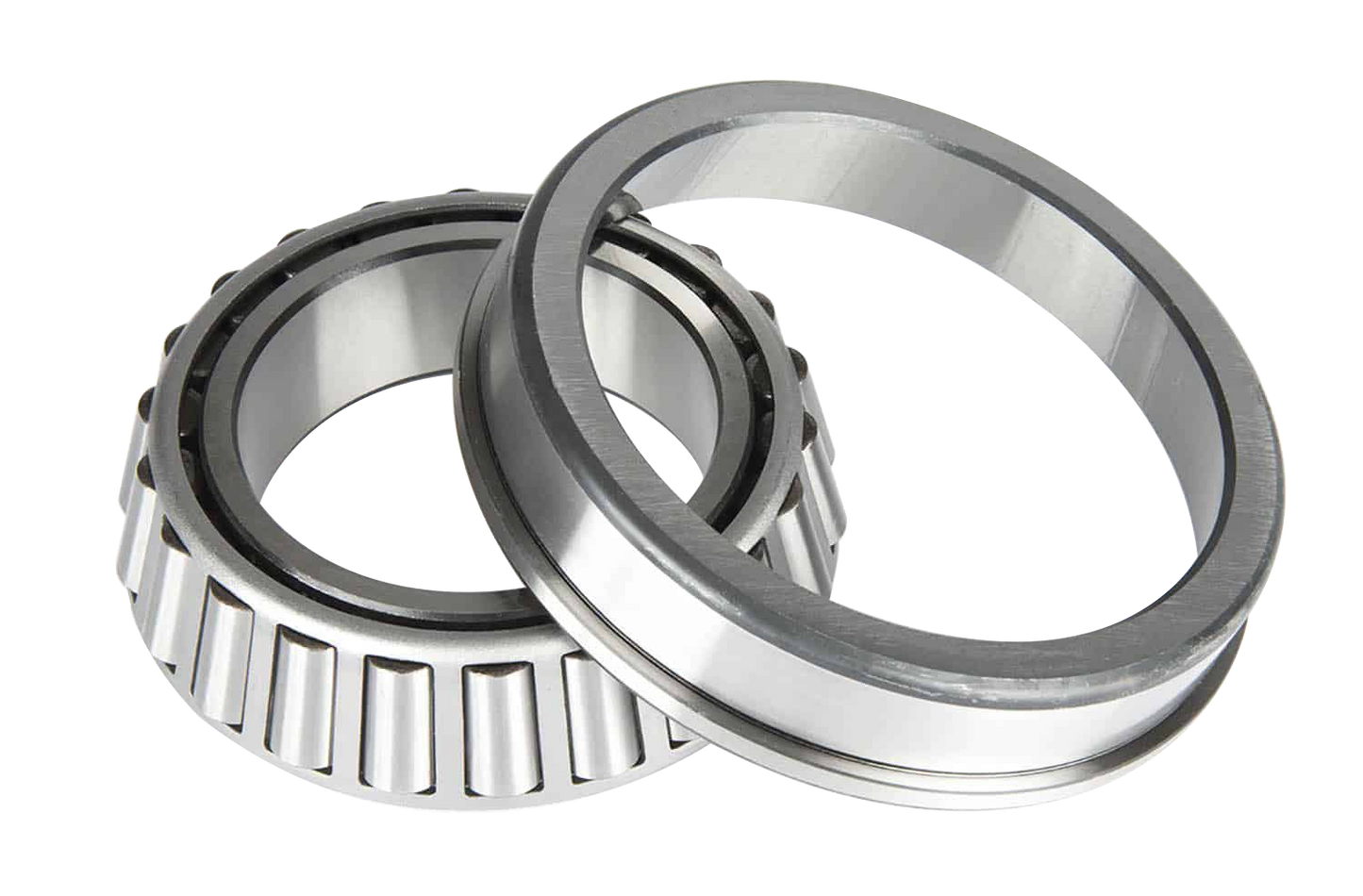

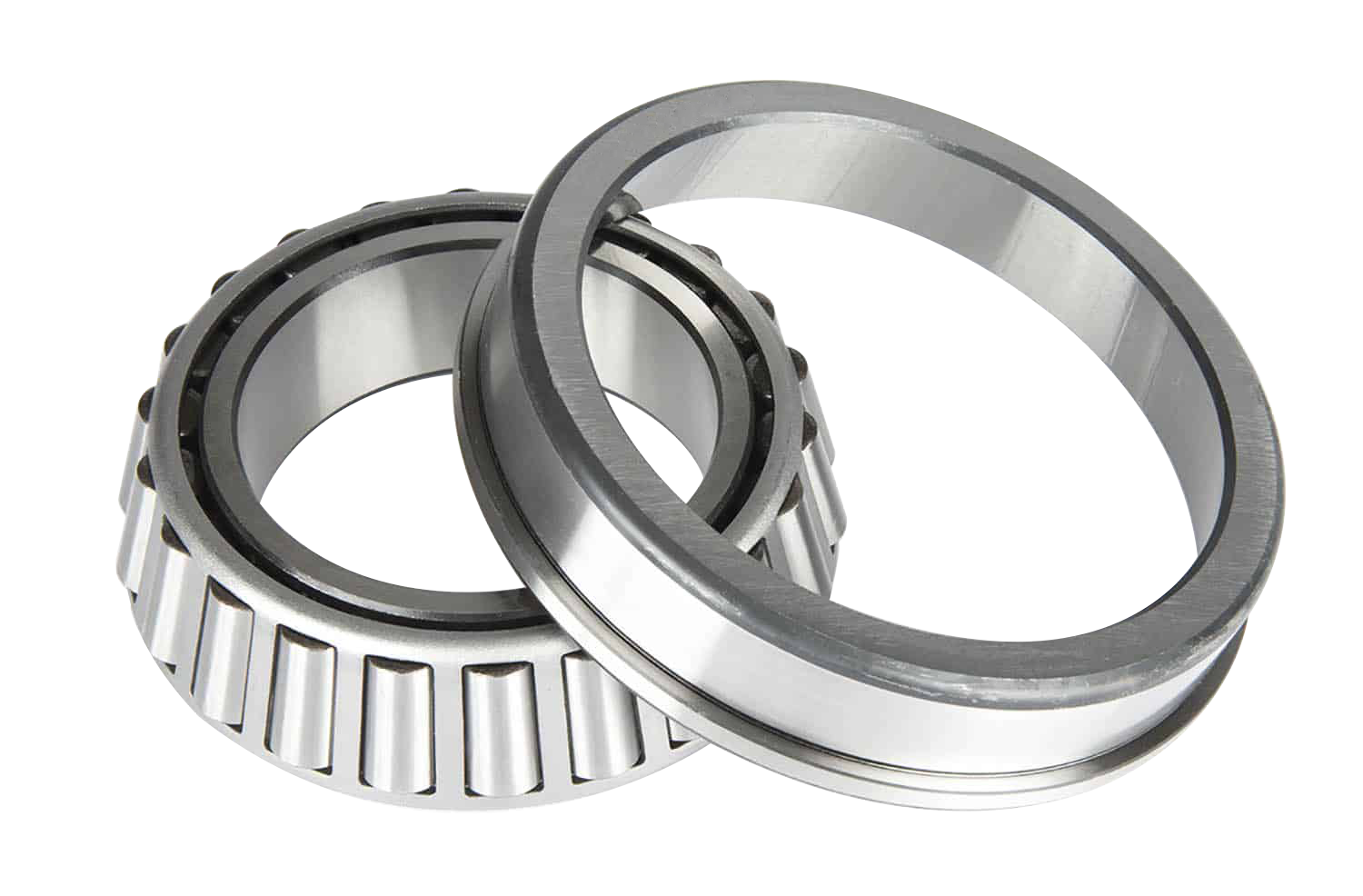

The HM807035/HM807010 is a single row tapered roller bearing set consisting of a cone (inner ring with rollers and cage) and cup (outer ring). This inch-series design provides both radial and axial load capacity in a separable configuration that simplifies mounting and maintenance.
Tapered roller bearings are commonly used in automotive wheel hubs, truck axles, gearboxes, and industrial machinery where combined loads are present. The set design allows for adjustment of internal clearance and preload to optimize performance for specific operating conditions.
Interchange / cross reference
ALLISC 0082305ALLISC 00823054ALLISC 082305AM 111E050655AMC 919599ARAMCO 1331967000AUSTIN 313468CASE F60823CHRYSL 1393094CHRYSL 1667010CHRYSL 1799297CHRYSL 799297CLARK 731127EATON 35502EUCLID 457342
Cross-references are provided as a guide — verify dimensions and fit for your application.
For large orders ($2000+) please inquire by email.
Measurement Type
Imperial
Inner Diameter (ID)
1 5/8 in
Outside Diameter (OD)
4.125 mm / 4 1/8 in
Width
1 7/16 in
Sealing
Open
Precision Class
ISO P0
Arrangement
One
Ball Material
Case Carburized Steel
Bearing Type
Tapered Roller Bearing
Other Features
Single Row | Tapered Roller Bearing
Component
Assembly
Number of Tapered Rows
1
Weight (kg)
1.68
Basic Number
HM807035/HM807010
UNSPSC
31171516
