HK3516B
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeRegular price
$13.63 USD
Regular price
Sale price
$13.63 USD
Unit price
per
Couldn't load pickup availability
Bore35 mm
1.378 in
Outside dia.42 mm
1.6535 in
Width16 mm
0.6299 in
TypeDrawn cup needle roller bearing, open ends
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

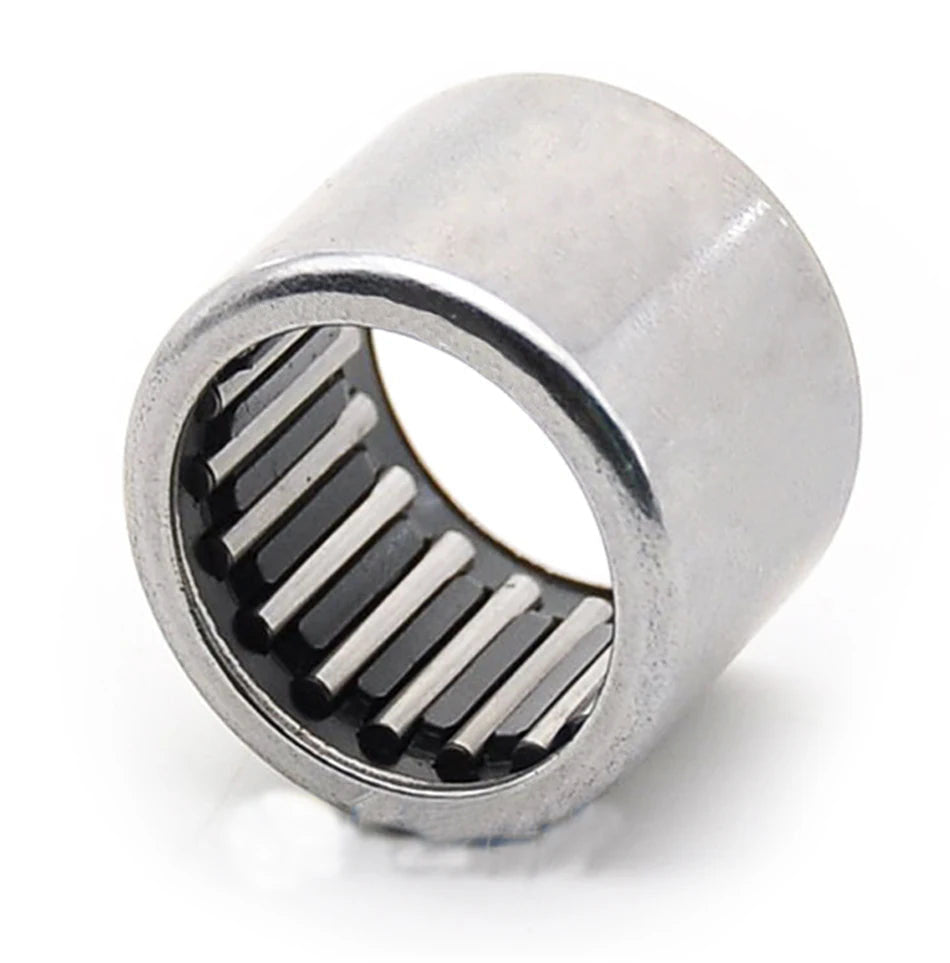

Image is for illustration purposes only.
HK3516B specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 35 mm | 1.378 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 42 mm | 1.6535 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 16 mm | 0.6299 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Drawn cup needle roller bearing, open ends | Stated by the designation | |
| Seals / shields | Open | Supplier catalogue listing | |
| Dynamic load rating, C | 18.7 kN | 4,204 lbf |
|---|---|---|
| Static load rating, C0 | 33 kN | 7,419 lbf |
HK3516B is a drawn cup needle roller bearing, open ends, 35 mm bore × 42 mm OD × 16 mm wide (1.378 × 1.6535 × 0.6299 in). KOYO catalogue values for HK3516B: dynamic load rating C = 18.7 kN, static C0 = 33 kN.
Measurement Type
Metric
Inner Diameter (ID)
35 mm
Outside Diameter (OD)
42 mm
Width
16 mm
Sealing
Open
Precision Class
ISO P0
Other Features
Drawn Cup Needle Roller Bearing | Radial Load Design
Component
Roller Assembly with Outer Ring-No Inner Ring
Weight (kg)
0.035
Basic Number
HK3516
UNSPSC
31171512
