HK3512B
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeRegular price
$12.49 USD
Regular price
Sale price
$12.49 USD
Unit price
per
Couldn't load pickup availability
Bore35 mm
1.378 in
Outside dia.42 mm
1.6535 in
Width12 mm
0.4724 in
TypeDrawn cup needle roller bearing, open ends
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout

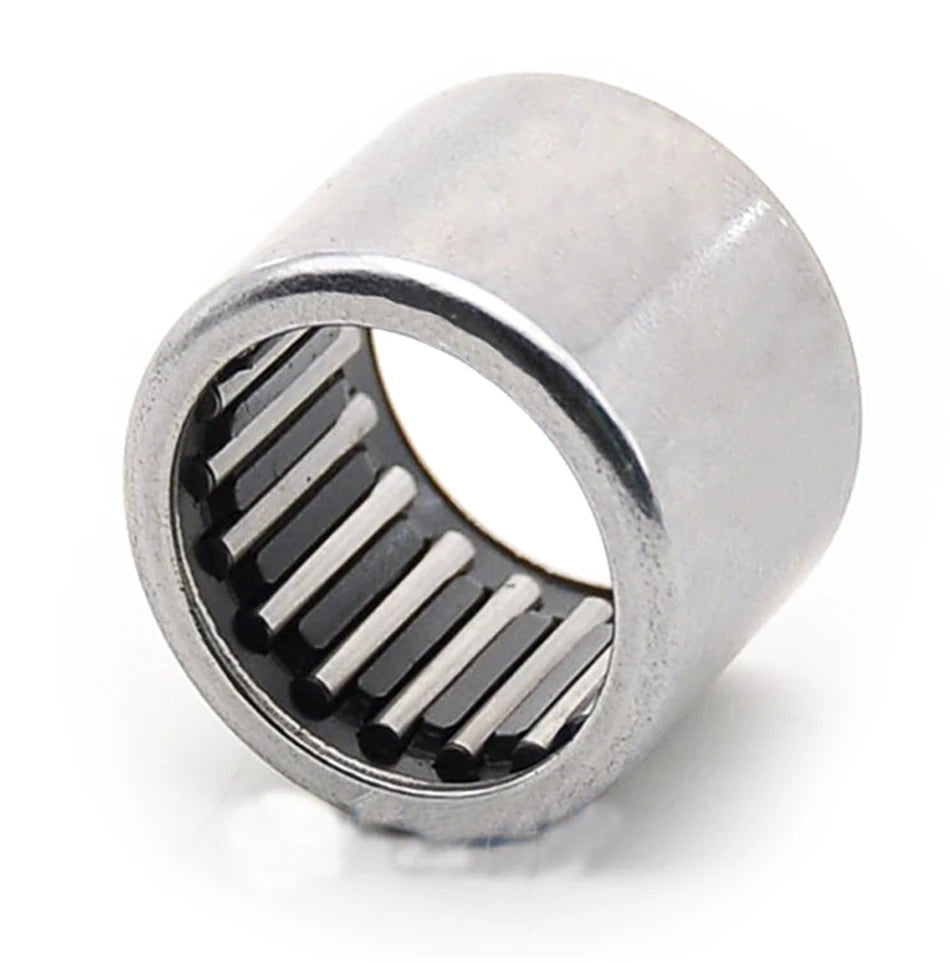

Image is for illustration purposes only.
HK3512B specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 35 mm | 1.378 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 42 mm | 1.6535 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 12 mm | 0.4724 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Drawn cup needle roller bearing, open ends | Stated by the designation | |
| Seals / shields | Open | Supplier catalogue listing | |
Equivalent to / interchanges with
Also listed in manufacturer interchange tables (2): confirm suffix codes before ordering
- SKF HK3512 (SKF Master Interchange)
- INA HK3512 (SKF Master Interchange)
These carry maker-specific suffix codes (cage, lubrication groove, design) that we have not matched one-for-one. The size is the same; check the codes against your application.
Equivalents are dimensional and closure-for-closure: same bore, outside diameter, width, seals or shields and internal clearance. Bearing interchange tables
HK3512B is a drawn cup needle roller bearing, open ends, 35 mm bore × 42 mm OD × 12 mm wide (1.378 × 1.6535 × 0.4724 in).
Measurement Type
Metric
Inner Diameter (ID)
35 mm
Outside Diameter (OD)
42 mm
Width
12 mm
Sealing
Open
Precision Class
ISO P0
Other Features
Drawn Cup Needle Roller Bearing | Radial Load Design
Component
Roller Assembly with Outer Ring-No Inner Ring
Weight (kg)
0.025
Basic Number
HK3512
UNSPSC
31171512
