HK3516.-2RS
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeRegular price
$14.91 USD
Regular price
Sale price
$14.91 USD
Unit price
per
Couldn't load pickup availability
Bore35 mm
1.378 in
Outside dia.42 mm
1.6535 in
Width16 mm
0.6299 in
TypeDrawn cup needle roller bearing, open ends
SealingContact rubber seals, both sides
Flat-rate shipping — calculated by weight at checkout

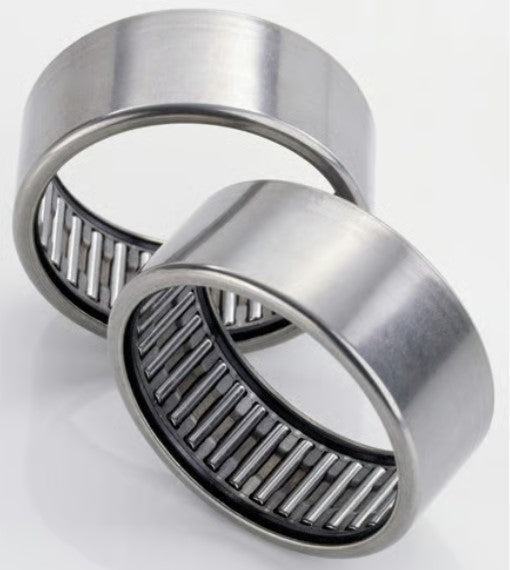

Image is for illustration purposes only.
HK3516.-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 35 mm | 1.378 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 42 mm | 1.6535 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 16 mm | 0.6299 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Drawn cup needle roller bearing, open ends | Stated by the designation | |
| Seals / shields | Contact rubber seals, both sides | Stated by the designation | |
HK3516.-2RS is a drawn cup needle roller bearing, open ends, 35 mm bore × 42 mm OD × 16 mm wide (1.378 × 1.6535 × 0.6299 in). It has rubber contact seals on both sides.
The HK3516.2RS is a drawn cup needle roller bearing with double rubber seals (2RS). This bearing features a thin-walled outer ring with a drawn cup design and full complement needle rollers, providing high radial load capacity in minimal radial space.
HK3516.2RS NEEDLE ROLLER BEARING DRAWN CUP CAGED BEARING
Measurement Type
Metric
Inner Diameter (ID)
35 mm
Outside Diameter (OD)
42 mm
Width
16 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Other Features
Drawn Cup Needle Roller Bearing | Radial Load Design | Sealed
Component
Roller Assembly with Outer Ring-No Inner Ring
Weight (kg)
0.037
Basic Number
HK3516
UNSPSC
31171512
