HK2518B.RS

Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agree
$12.67 USD
$12.67 USD
Sale Sold out
Bore25 mm 0.9843 in
Outside dia.32 mm 1.2598 in
Width18 mm 0.7087 in
TypeDrawn cup needle roller bearing, open ends
SealingSingle Sealed
Flat-rate shipping — calculated by weight at checkout
  • HK2518B.RS Needle Roller Bearings
1 1

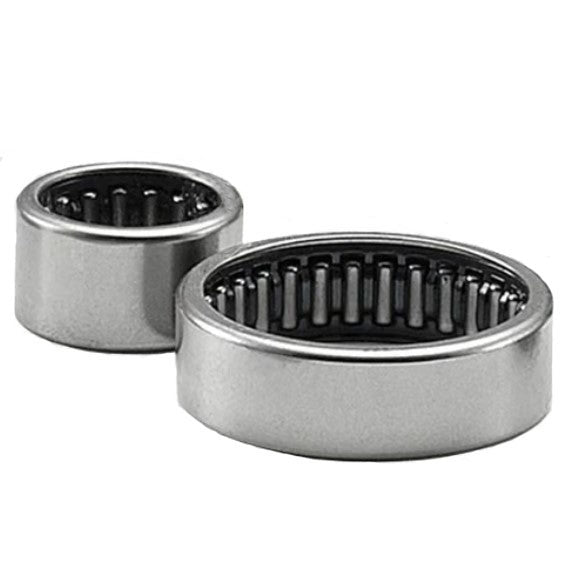

Image is for illustration purposes only.

HK2518B.RS specifications

Specification Metric Inch Basis
Bore (d) 25 mm 0.9843 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 32 mm 1.2598 in ISO table for this designation, confirmed by supplier data
Width (B) 18 mm 0.7087 in ISO table for this designation, confirmed by supplier data
Bearing type Drawn cup needle roller bearing, open ends Stated by the designation
Seals / shields Single Sealed Supplier catalogue listing
Cage Pressed Steel Supplier catalogue listing
Reference ratings: KOYO HK2518B.RS catalogue values. Ratings differ slightly between makers; the brand we ship may vary.
Dynamic load rating, C10.9 kN2,450 lbf
Static load rating, C014.68 kN3,300 lbf

HK2518B.RS is a drawn cup needle roller bearing, open ends, 25 mm bore × 32 mm OD × 18 mm wide (0.9843 × 1.2598 × 0.7087 in). KOYO catalogue values for HK2518B.RS: dynamic load rating C = 10.9 kN, static C0 = 14.68 kN.

The HK2518B.RS is a drawn cup needle roller bearing with a single seal and cage design. This bearing features a thin-walled outer ring drawn from sheet steel, multiple needle rollers guided by a cage, and one side protected by an RS seal to prevent contamination while the other side remains open.
