HK1614B.RS

Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agree
$11.25 USD
$11.25 USD
Sale Sold out
Bore16 mm 0.6299 in
Outside dia.22 mm 0.8661 in
Width14 mm 0.5512 in
TypeDrawn cup needle roller bearing, open ends
SealingSingle Sealed
Flat-rate shipping — calculated by weight at checkout
  • HK1614B.RS Needle Roller Bearings
1 1

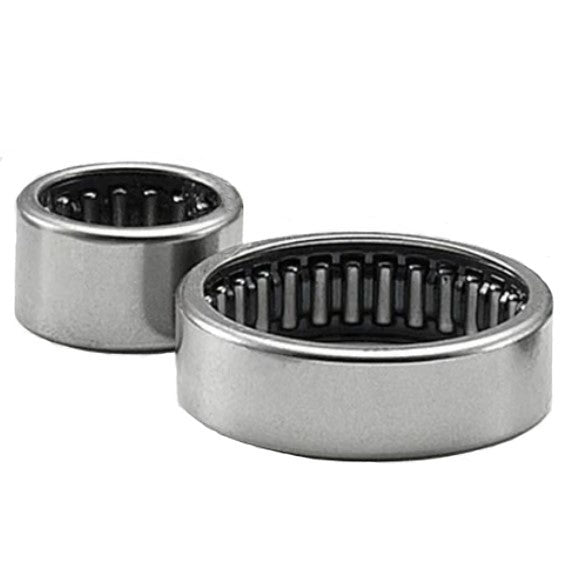

Image is for illustration purposes only.

HK1614B.RS specifications

Specification Metric Inch Basis
Bore (d) 16 mm 0.6299 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 22 mm 0.8661 in ISO table for this designation, confirmed by supplier data
Width (B) 14 mm 0.5512 in ISO table for this designation, confirmed by supplier data
Bearing type Drawn cup needle roller bearing, open ends Stated by the designation
Seals / shields Single Sealed Supplier catalogue listing
Cage Pressed Steel Supplier catalogue listing
Reference ratings: KOYO HK1614B.RS catalogue values. Ratings differ slightly between makers; the brand we ship may vary.
Dynamic load rating, C7.83 kN1,760 lbf
Static load rating, C09.74 kN2,190 lbf

HK1614B.RS is a drawn cup needle roller bearing, open ends, 16 mm bore × 22 mm OD × 14 mm wide (0.6299 × 0.8661 × 0.5512 in). KOYO catalogue values for HK1614B.RS: dynamic load rating C = 7.83 kN, static C0 = 9.74 kN.

The HK1614B.RS is a drawn cup needle roller bearing with a single seal and cage. This compact bearing features a thin-walled outer ring with a drawn cup design, multiple small diameter needle rollers retained by a cage, and a single seal for protection against contaminants on one side.

HK1614B.RS Single Sealed, Caged Drawn Cup Needle Roller Bearing, 16 mm Inner Diameter x 22 mm Outer Diameter x 14 mm Width
