Bore25 mm
0.9843 in
Outside dia.32 mm
1.2598 in
Width20 mm
0.7874 in
TypeDrawn cup needle roller bearing, open ends
SealingContact rubber seals, both sides
Flat-rate shipping — calculated by weight at checkout

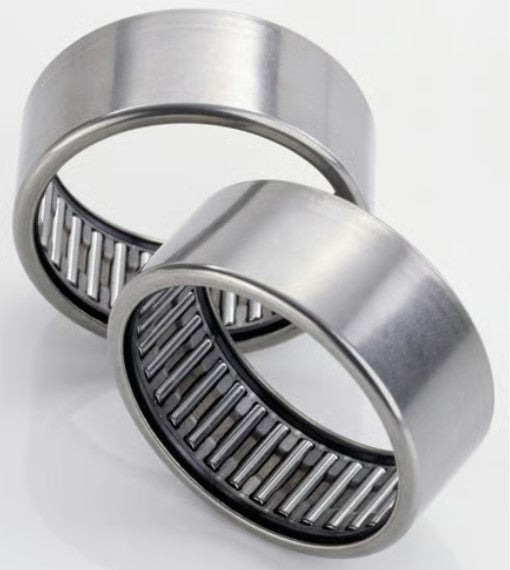

Image is for illustration purposes only.
HK2520.-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 25 mm | 0.9843 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 32 mm | 1.2598 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 20 mm | 0.7874 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Drawn cup needle roller bearing, open ends | Stated by the designation | |
| Seals / shields | Contact rubber seals, both sides | Stated by the designation | |
HK2520.-2RS is a drawn cup needle roller bearing, open ends, 25 mm bore × 32 mm OD × 20 mm wide (0.9843 × 1.2598 × 0.7874 in). It has rubber contact seals on both sides.
The HK2520.2RS is a drawn cup needle roller bearing with double rubber seals (2RS). This bearing features a thin-walled outer ring drawn from steel sheet and needle rollers, providing high load capacity in a compact radial space.
Measurement Type
Metric
Inner Diameter (ID)
25 mm
Outside Diameter (OD)
32 mm
Width
20 mm
Sealing
Double Sealed
Precision Class
ISO P0
Other Features
Drawn Cup Needle Roller Bearing | Radial Load Design | Sealed
Component
Roller Assembly with Outer Ring-No Inner Ring
Weight (kg)
0.04
Basic Number
HK2520
UNSPSC
31171512
