HK2516B

Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agree
$9.54 USD
$9.54 USD
Sale Sold out
Bore25 mm 0.9843 in
Outside dia.32 mm 1.2598 in
Width16 mm 0.6299 in
TypeDrawn cup needle roller bearing, open ends
SealingOpen
Ships from US partner stock — flat-rate shipping, calculated by weight at checkout
  • HK2516B Needle Roller Bearings
1 1

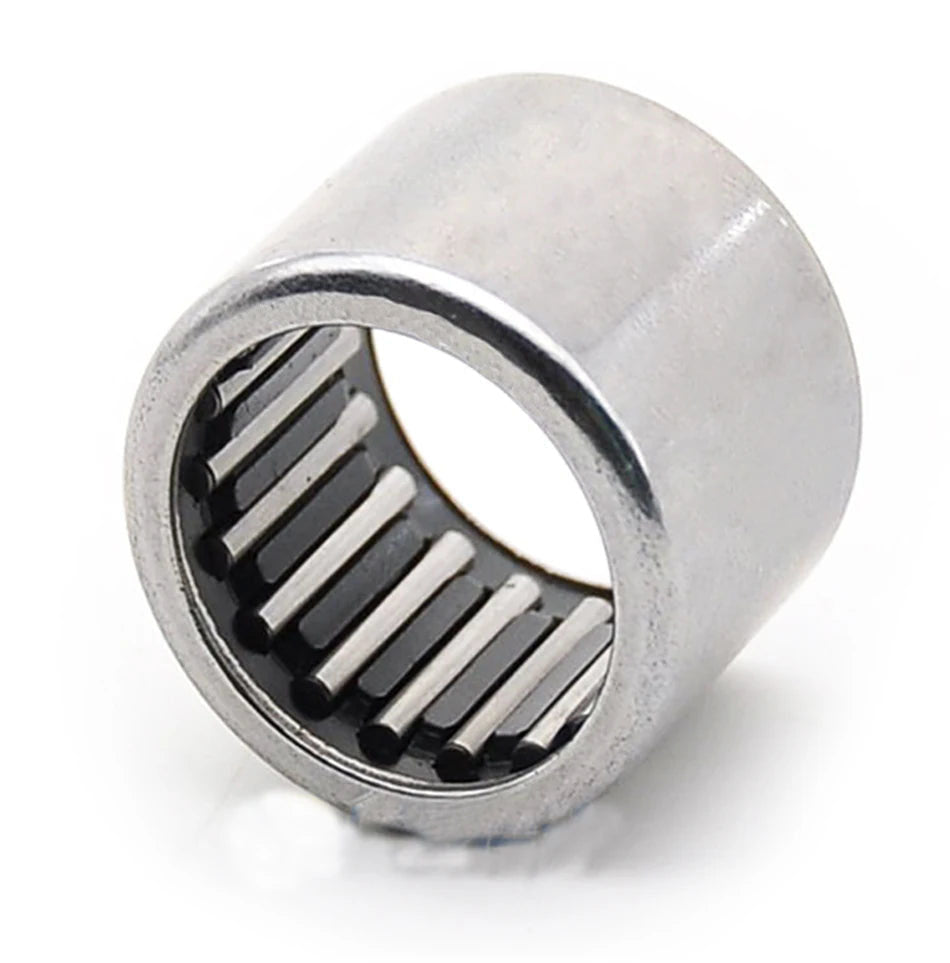

Image is for illustration purposes only.

HK2516B specifications

Specification Metric Inch Basis
Bore (d) 25 mm 0.9843 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 32 mm 1.2598 in ISO table for this designation, confirmed by supplier data
Width (B) 16 mm 0.6299 in ISO table for this designation, confirmed by supplier data
Bearing type Drawn cup needle roller bearing, open ends Stated by the designation
Seals / shields Open Supplier catalogue listing
Reference ratings: KOYO HK2516B catalogue values. Ratings differ slightly between makers; the brand we ship may vary.
Dynamic load rating, C15.6 kN3,507 lbf
Limiting speed, grease8,510 rpm
Limiting speed, oil13,000 rpm

HK2516B is a drawn cup needle roller bearing, open ends, 25 mm bore × 32 mm OD × 16 mm wide (0.9843 × 1.2598 × 0.6299 in). KOYO catalogue values for HK2516B: dynamic load rating C = 15.6 kN, limiting speed 8,510 rpm on grease, 13,000 rpm on oil.

The HK2516B is an open type drawn cup needle roller bearing with a cage to maintain needle spacing. This compact radial bearing features a thin-walled outer ring and long, small diameter rollers that provide high load capacity in limited radial space.

HK2516B Open Type, Caged Drawn Cup Needle Roller Bearing, 25 mm Inner Diameter x 32 mm Outer Diameter x 16 mm Width
