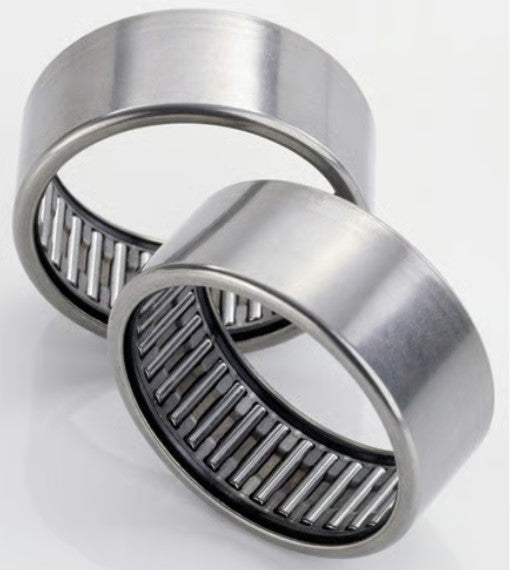

HK2220.-2RS
Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agreeRegular price
$18.79 USD
Regular price
Sale price
$18.79 USD
Unit price
per
Couldn't load pickup availability
Bore22 mm
0.8661 in
Outside dia.28 mm
1.1024 in
Width20 mm
0.7874 in
TypeDrawn cup needle roller bearing, open ends
SealingContact rubber seals, both sides
Flat-rate shipping — calculated by weight at checkout
Image is for illustration purposes only.
HK2220.-2RS specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 22 mm | 0.8661 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 28 mm | 1.1024 in | ISO table for this designation, confirmed by supplier data |
| Width (B) | 20 mm | 0.7874 in | ISO table for this designation, confirmed by supplier data |
| Bearing type | Drawn cup needle roller bearing, open ends | Stated by the designation | |
| Seals / shields | Contact rubber seals, both sides | Stated by the designation | |
HK2220.-2RS is a drawn cup needle roller bearing, open ends, 22 mm bore × 28 mm OD × 20 mm wide (0.8661 × 1.1024 × 0.7874 in). It has rubber contact seals on both sides.
The HK2220.2RS is a drawn cup needle roller bearing with double seals and a cage. This design features a thin-walled outer ring drawn from steel sheet, needle rollers retained by a cage, and integral seals on both sides to protect against contamination and retain lubrication.
Measurement Type
Metric
Inner Diameter (ID)
22 mm
Outside Diameter (OD)
28 mm
Width
20 mm
Sealing
Double Sealed
Precision Class
ISO P0
Cage
Caged
Other Features
Drawn Cup Needle Roller Bearing | Radial Load Design | Sealed
Component
Roller Assembly with Outer Ring-No Inner Ring
Weight (kg)
0.026
Basic Number
HK2220
UNSPSC
31171512
