Image is for illustration purposes only.
6202-2RSNR-5/8

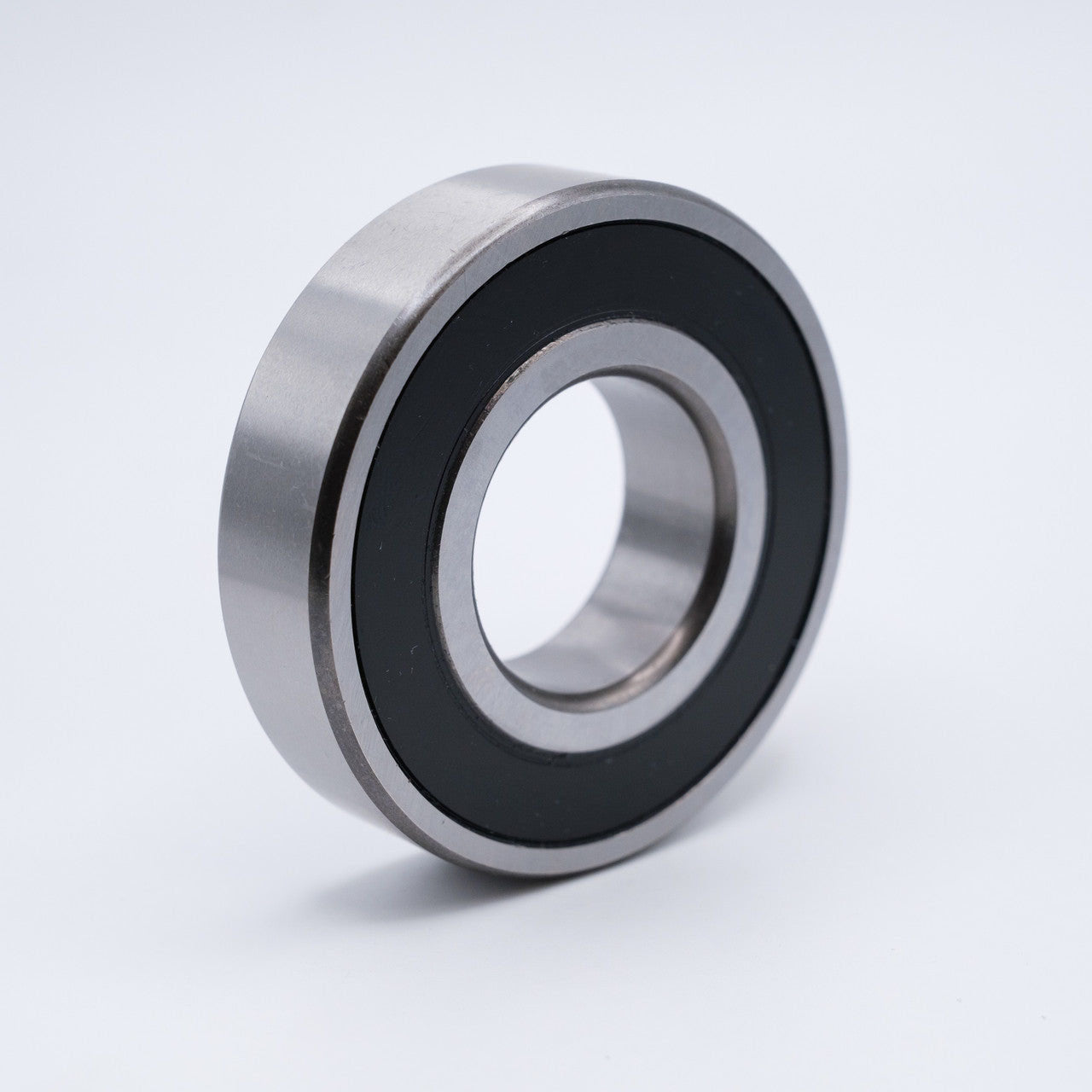

This deep groove ball bearing features a 15mm bore diameter, 35mm outside diameter, and 11mm width. It is equipped with contact rubber seals on both sides (2RS) for protection against contaminants, plus a snap ring and groove on the outer ring (NR) for axial positioning in housing applications.
Deep groove ball bearings are versatile components suitable for high-speed operation and applications requiring low noise and low friction. Common uses include electric motors, pumps, automotive components, household appliances, and general industrial machinery where radial and light thrust loads are present.
6202 2RSNR-5/8 6200 Series Special Bore Bearing
For large orders ($2000+) please inquire by email.
Measurement Type
Imperial
Inner Diameter (ID)
15 mm / 5/8 in
Outside Diameter (OD)
35 mm
Width
11 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Series
62
Bearing Type
Deep groove ball bearing
Other Features
Single Row | Deep Groove Ball Bearing | Rubber Seals
Component
Assembly
Weight (kg)
0.045
Basic Number
6202
UNSPSC
31171504
