62022NSE9CM

Tier-one manufacturer — brand supplied may vary ✓ Dimensions checked: ISO table and supplier data agree
$3.44 USD
$3.44 USD
Sale Sold out
Bore15 mm 0.5906 in
Outside dia.35 mm 1.378 in
Width11 mm 0.4331 in
TypeDeep groove ball bearing
SealingContact rubber seals, both sides
ClearanceCM
Flat-rate shipping — calculated by weight at checkout
1 1

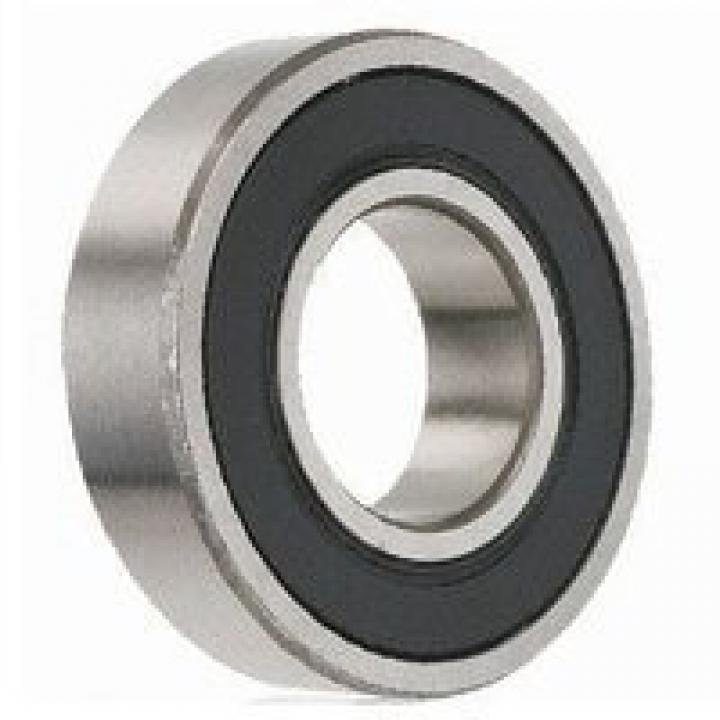

Image is for illustration purposes only.

What 62022NSE9CM means

CodePositionMeaning
6 Type Deep groove ball bearing
2 Diameter series Diameter series 2 (light): fixes OD and width for the bore (ISO 15)
02 Bore Bore code 02 = 15 mm (codes 00, 01, 02 and 03 are fixed at 10, 12, 15 and 17 mm)
2NSE9 Closure Contact rubber seals, both sides
CM Internal clearance CM: narrowed clearance band for electric motors (not the same as C3)

Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.

62022NSE9CM specifications

Specification Metric Inch Basis
Bore (d) 15 mm 0.5906 in ISO table for this designation, confirmed by supplier data
Outside diameter (D) 35 mm 1.378 in ISO table for this designation, confirmed by supplier data
Width (B) 11 mm 0.4331 in ISO table for this designation, confirmed by supplier data
Bearing type Deep groove ball bearing Stated by the designation
Seals / shields Contact rubber seals, both sides Stated by the designation
Internal clearance CM: narrowed clearance band for electric motors (not the same as C3) Stated by the designation
Tolerance class Normal (ISO P0 / ABEC 1): no tolerance-class code Stated by the designation

62022NSE9CM is a deep groove ball bearing, 15 mm bore × 35 mm OD × 11 mm wide (0.5906 × 1.378 × 0.4331 in). It has rubber contact seals on both sides and CM internal clearance.
