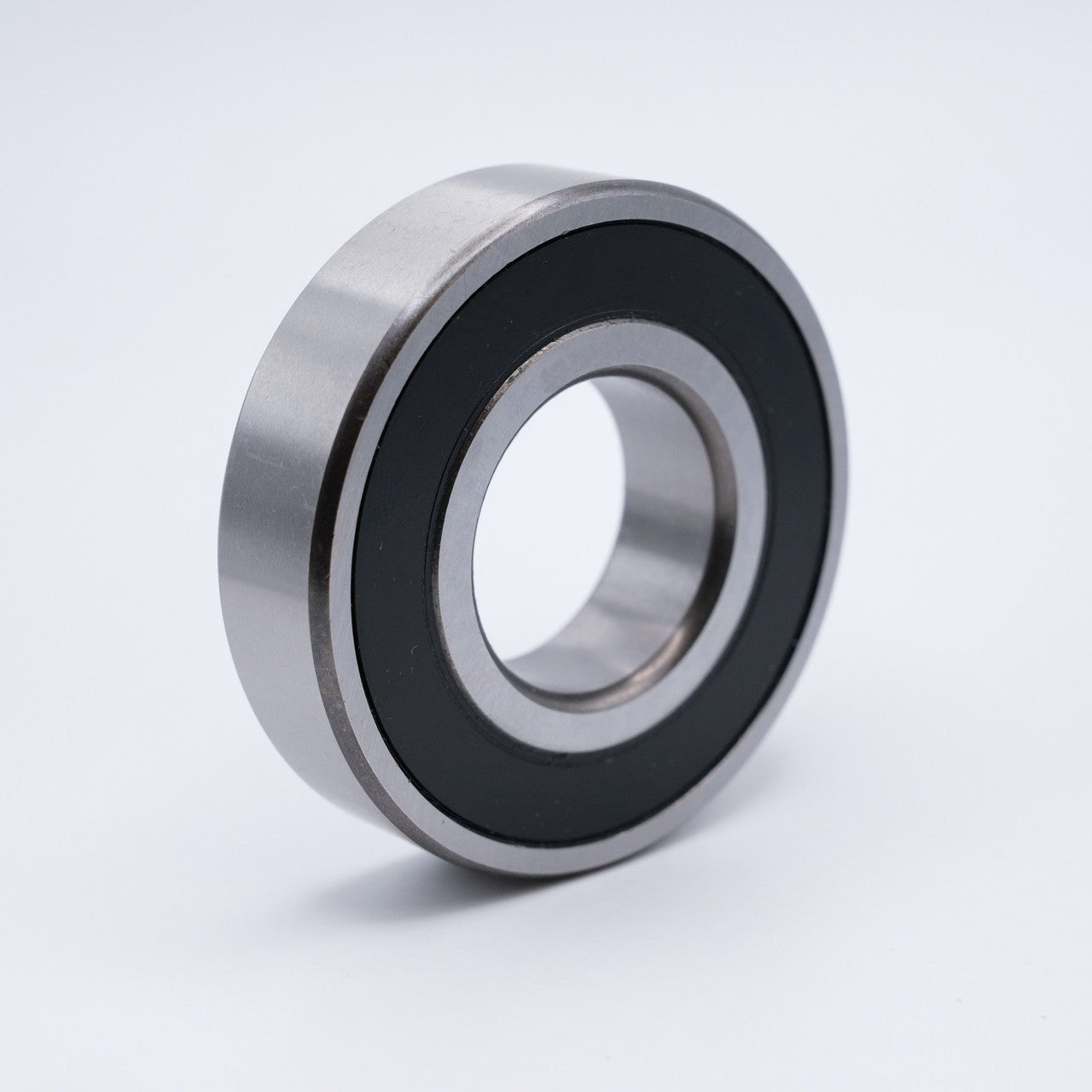

6202-2RS-5/8
The 6202-2RS-5/8 is a deep groove ball bearing from the 6200 series, featuring contact rubber seals on both sides (2RS) for protection against contaminants and lubricant retention. It has a 15mm bore diameter, 35mm outside diameter, and 11mm width, with a special 5/8 inch bore designation.
Deep groove ball bearings are versatile components suitable for applications requiring high-speed operation and moderate radial and axial loads. Common uses include electric motors, pumps, conveyors, automotive components, and general industrial machinery where reliable rotational support is needed.
6202 2RS-5/8 6200 Series Special Bore Bearing
For large orders ($2000+) please inquire by email.
Measurement Type
Imperial
Inner Diameter (ID)
15 mm / 5/8 in
Outside Diameter (OD)
35 mm
Width
11 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Series
62
Bearing Type
Deep groove ball bearing
Other Features
Single Row | Deep Groove Ball Bearing | Rubber Seals
Component
Assembly
Weight (kg)
0.045
Basic Number
6202
UNSPSC
31171504
