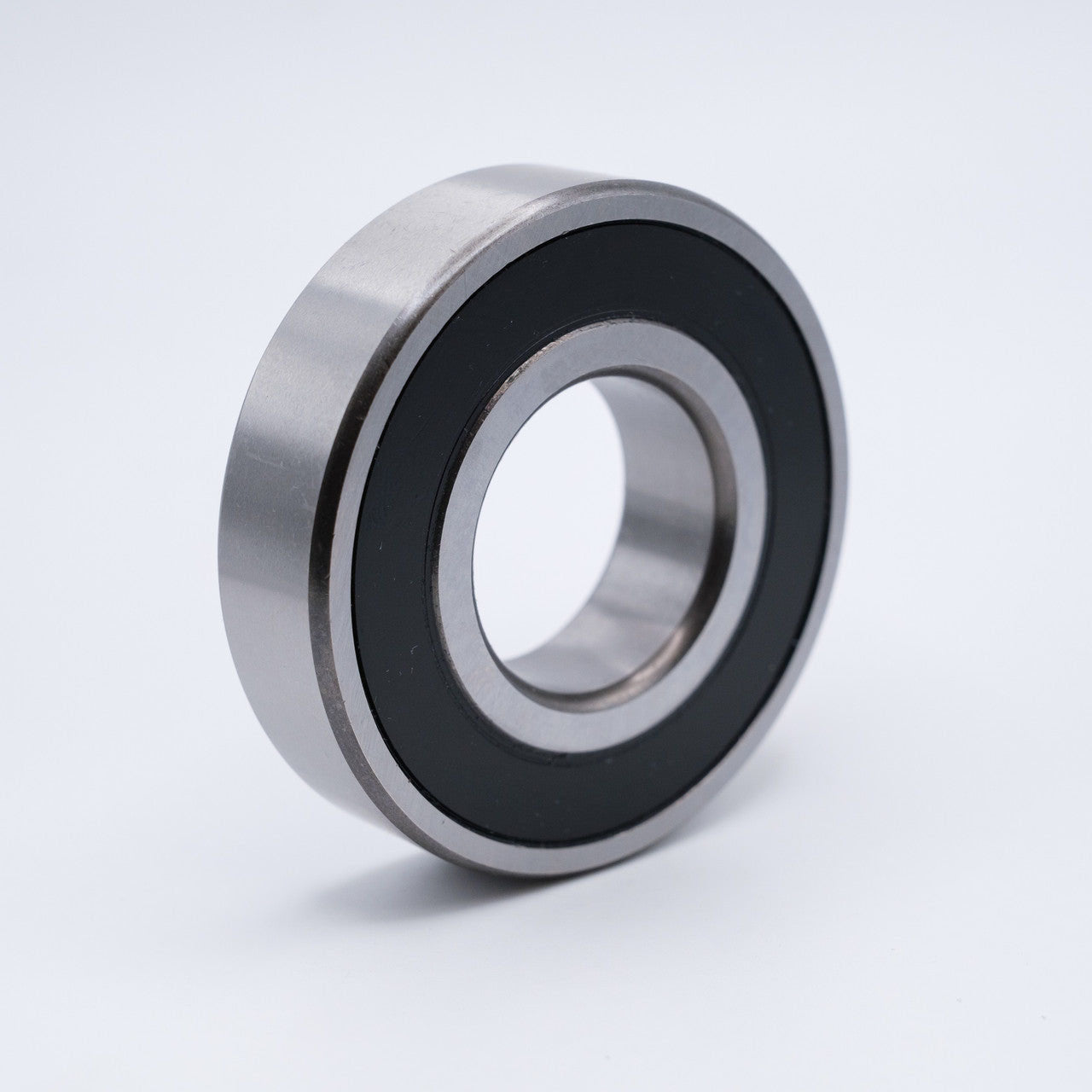

Image is for illustration purposes only.
6203-2RS-3/4
The 6203-2RS-3/4 is a deep groove ball bearing from the 6200 series, featuring a 3/4 inch bore diameter, 40mm outside diameter, and 12mm width. This bearing is equipped with contact rubber seals on both sides to retain lubrication and exclude contaminants.
Deep groove ball bearings are versatile components suitable for a wide range of industrial applications including electric motors, pumps, agricultural equipment, and conveyor systems. The sealed design makes this bearing appropriate for environments where protection from dust and moisture is required.
6203 2RS-3/4 6200 Series Special Bore Bearing
For large orders ($2000+) please inquire by email.
Measurement Type
Imperial
Inner Diameter (ID)
17 mm / 3/4 in
Outside Diameter (OD)
40 mm
Width
12 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Series
62
Bearing Type
Deep groove ball bearing
Other Features
Single Row | Deep Groove Ball Bearing | Rubber Seals
Component
Assembly
Weight (kg)
0.066
Basic Number
6203
UNSPSC
31171504
