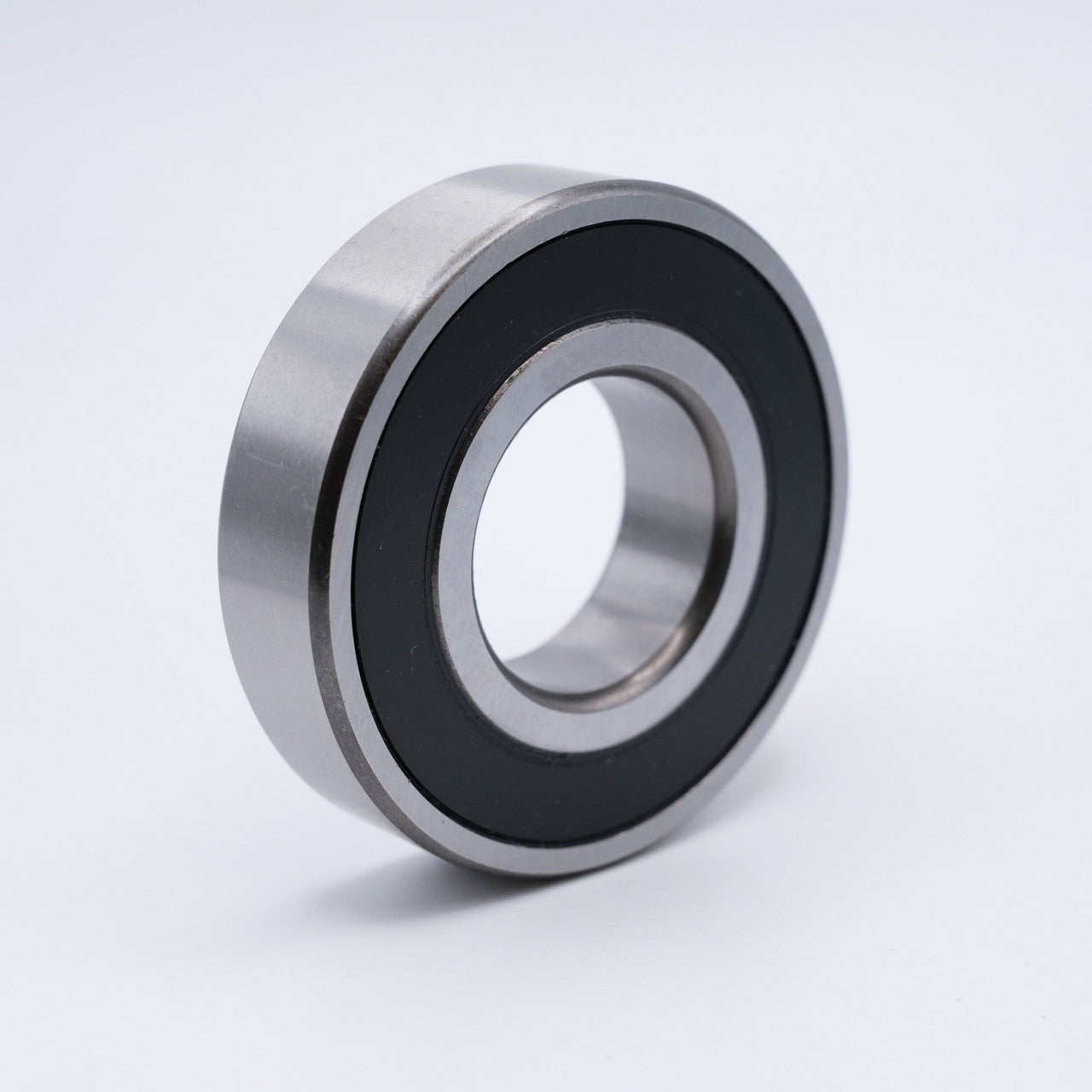

Image is for illustration purposes only.
6203-2RS-1/2
The 6203-2RS-1/2 is a deep groove ball bearing with contact rubber seals on both sides, measuring 17mm bore diameter, 40mm outside diameter, and 12mm width. The sealed design provides protection against contaminants while retaining lubrication for extended service life.
Deep groove ball bearings are versatile components suitable for applications including electric motors, pumps, agricultural equipment, conveyors, and general industrial machinery where radial and light thrust loads are present at moderate speeds.
Interchange / cross reference
TIMKEN 203RRAB
Cross-references are provided as a guide — verify dimensions and fit for your application.
6203 2RS-1/2 6200 Series Special Bore Bearing
For large orders ($2000+) please inquire by email.
Measurement Type
Imperial
Inner Diameter (ID)
17 mm / 1/2 in
Outside Diameter (OD)
40 mm
Width
12 mm
Sealing
Double Sealed
Precision Class
ABEC 1 | ISO P0
Series
62
Bearing Type
Deep groove ball bearing
Other Features
Single Row | Deep Groove Ball Bearing | Rubber Seals
Component
Assembly
Weight (kg)
0.066
Basic Number
6203
UNSPSC
31171504
