51136
Tier-one manufacturer — brand supplied may vary ✓ Dimensions confirmed by two independent sourcesCouldn't load pickup availability

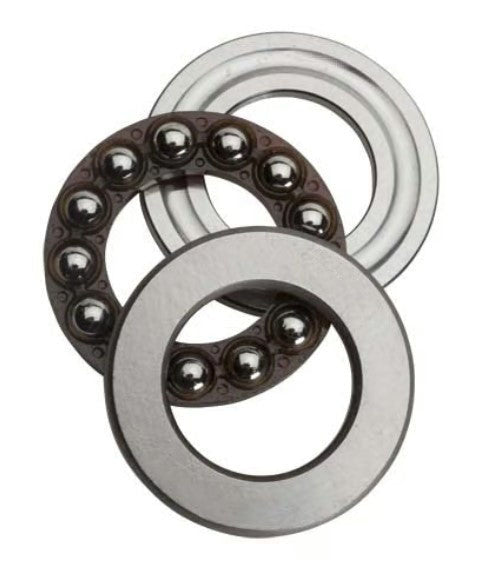

Image is for illustration purposes only.
What 51136 means
| Code | Position | Meaning |
|---|---|---|
5 |
Type | Thrust ball bearing |
1 |
Height series | Height series 1 |
1 |
Diameter series | Diameter series 1 (extra light) |
36 |
Bore | Bore code 36 × 5 = 180 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
51136 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 180 mm | 7.0866 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 225 mm | 8.8583 in | Two independent catalogue sources agree |
| Height (H) | 34 mm | 1.3386 in | Two independent catalogue sources agree |
| Bearing type | Thrust ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Cage | Steel | Supplier catalogue listing | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
| Material | Steel | Supplier catalogue listing | |
| Dynamic load rating, C | 135.67 kN | 30,500 lbf |
|---|---|---|
| Static load rating, C0 | 524.89 kN | 118,000 lbf |
| Limiting speed, grease | 1,100 rpm | |
| Limiting speed, oil | 1,500 rpm | |
51136 is a thrust ball bearing, 180 mm bore × 225 mm OD × 34 mm wide (7.0866 × 8.8583 × 1.3386 in). NTN catalogue values for 51136: dynamic load rating C = 135.67 kN, static C0 = 524.89 kN, limiting speed 1,100 rpm on grease, 1,500 rpm on oil.
The 51136 is a thrust ball bearing from the 511 series, designed with a 180 mm bore diameter to support axial loads in a single direction. Thrust ball bearings use ball rolling elements between grooved raceways to accommodate high axial forces while maintaining precise axial positioning.
