51132
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableRegular price
$341.00 USD
Regular price
Sale price
$341.00 USD
Unit price
per
Couldn't load pickup availability
Bore160 mm
6.2992 in
Outside dia.200 mm
7.874 in
Height31 mm
1.2205 in
TypeThrust ball bearing
SealingOpen
Ships separately from our European warehouse — shipping from $79, quoted at checkout
Ships from our European partner stock — allow 5–8 business days
Ships from our European partner stock — allow 5–8 business days

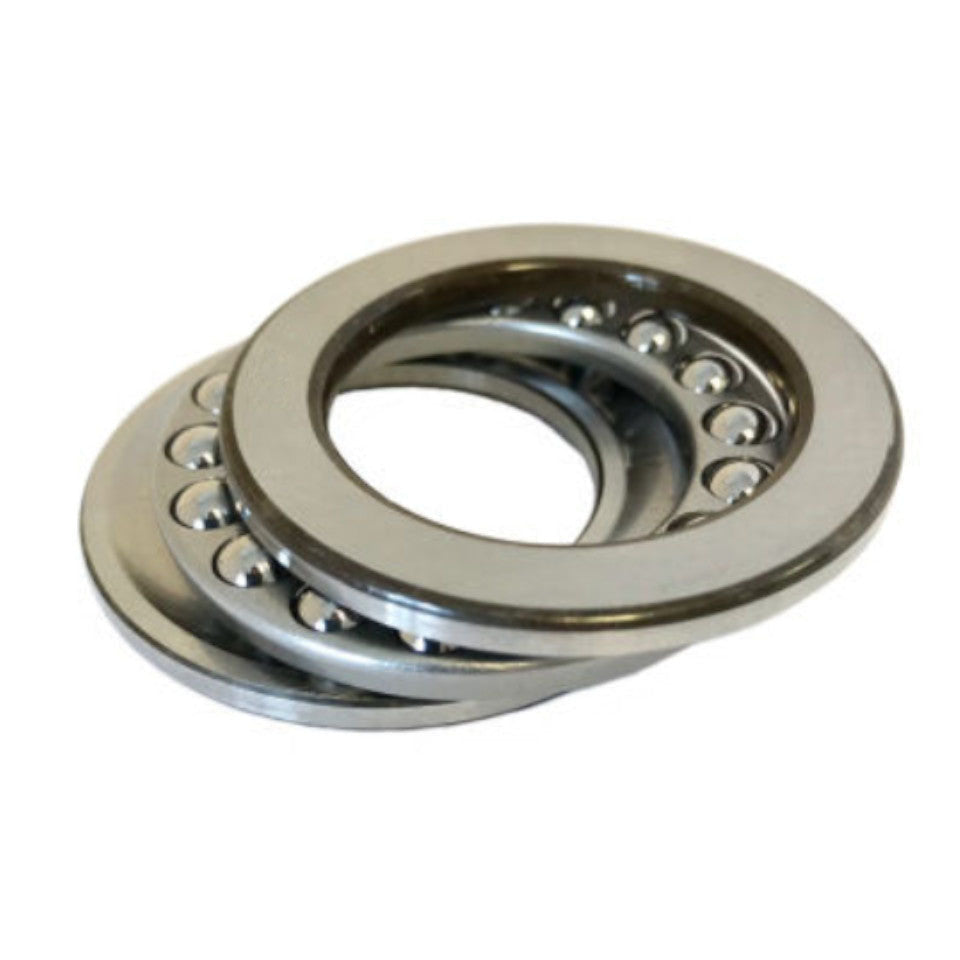

Image is for illustration purposes only.
What 51132 means
| Code | Position | Meaning |
|---|---|---|
5 |
Type | Thrust ball bearing |
1 |
Height series | Height series 1 |
1 |
Diameter series | Diameter series 1 (extra light) |
32 |
Bore | Bore code 32 × 5 = 160 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
51132 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 160 mm | 6.2992 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 200 mm | 7.874 in | Supplier catalogue listing |
| Height (H) | 31 mm | 1.2205 in | Supplier catalogue listing |
| Bearing type | Thrust ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
51132 is a thrust ball bearing, 160 mm bore × 200 mm OD × 31 mm wide (6.2992 × 7.874 × 1.2205 in).
The 51132 is a thrust ball bearing designed to support predominantly axial loads in one direction while allowing rotation between machine components. With a 160mm bore diameter, this bearing is suited for medium to large industrial applications requiring axial load capacity.
Inner Diameter (ID)
160 mm
Outside Diameter (OD)
200 mm
Width
31 mm
Series
511
Bearing Type
Thrust ball bearing
