51130
Tier-one manufacturer — brand supplied may vary ✓ Bore checked against the ISO tableRegular price
$232.00 USD
Regular price
Sale price
$232.00 USD
Unit price
per
Couldn't load pickup availability
Bore150 mm
5.9055 in
Outside dia.190 mm
7.4803 in
Height31 mm
1.2205 in
TypeThrust ball bearing
SealingOpen
Ships separately from our European warehouse — shipping from $79, quoted at checkout
Ships from our European partner stock — allow 5–8 business days
Ships from our European partner stock — allow 5–8 business days

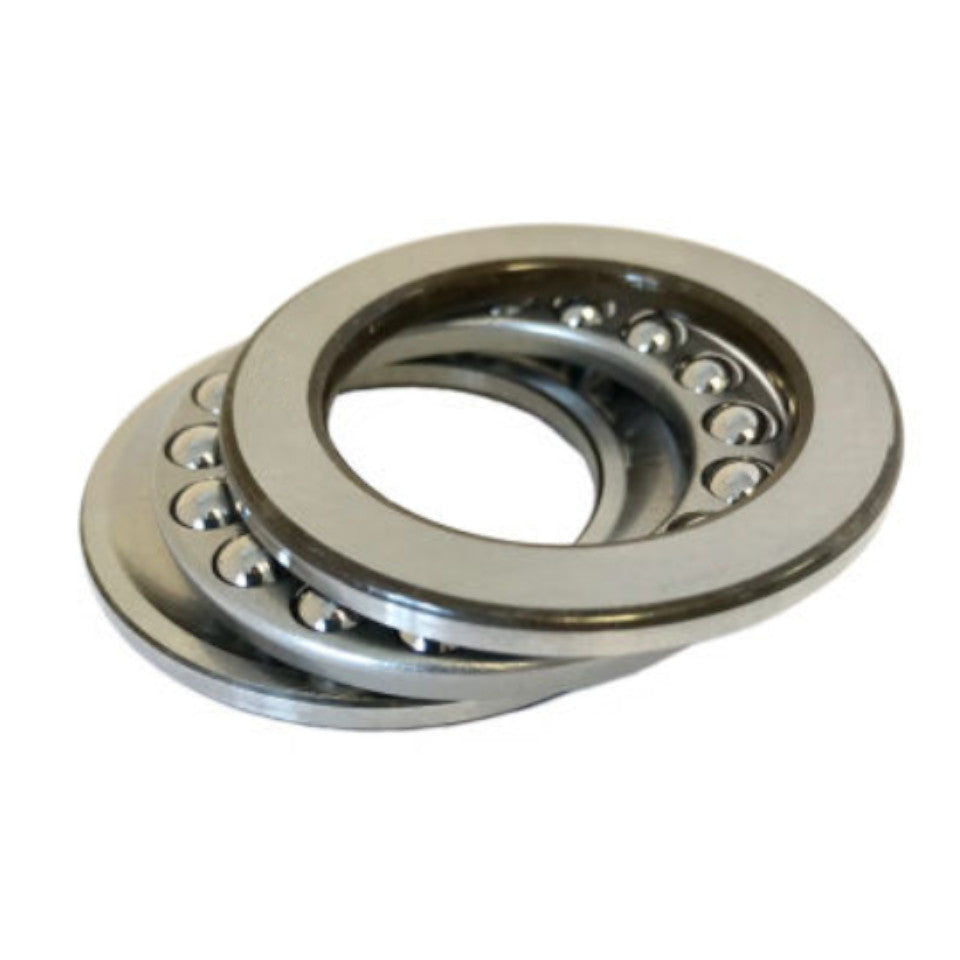

Image is for illustration purposes only.
What 51130 means
| Code | Position | Meaning |
|---|---|---|
5 |
Type | Thrust ball bearing |
1 |
Height series | Height series 1 |
1 |
Diameter series | Diameter series 1 (extra light) |
30 |
Bore | Bore code 30 × 5 = 150 mm |
Read from the ISO / ABMA numbering rules and the makers' published suffix conventions. Decode any other number with the bearing number decoder.
51130 specifications
| Specification | Metric | Inch | Basis |
|---|---|---|---|
| Bore (d) | 150 mm | 5.9055 in | ISO table for this designation, confirmed by supplier data |
| Outside diameter (D) | 190 mm | 7.4803 in | Supplier catalogue listing |
| Height (H) | 31 mm | 1.2205 in | Supplier catalogue listing |
| Bearing type | Thrust ball bearing | Stated by the designation | |
| Seals / shields | Open (no seals or shields) | Stated by the designation | |
| Tolerance class | Normal (ISO P0 / ABEC 1): no tolerance-class code | Stated by the designation | |
51130 is a thrust ball bearing, 150 mm bore × 190 mm OD × 31 mm wide (5.9055 × 7.4803 × 1.2205 in).
The 51130 is a thrust ball bearing designed to support axial loads in a single direction. With a 150mm bore diameter, this bearing features a compact design suitable for applications requiring axial load capacity in rotating machinery.
Inner Diameter (ID)
150 mm
Outside Diameter (OD)
190 mm
Width
31 mm
Series
511
Bearing Type
Thrust ball bearing
